Elite Austenitic Friction Stay - 16" Side Hung EG 13mm Stack
16" Elite Austenitic Egress Friction Hinge Side Hung 13mm Stack Height
The Elite egress range is designed for fire escape and emergency exit, by providing the user with maximum clearance in the event of an emergency. Made from Austenitic Stainless Steel with excellent corrosion resistance in many environments.
This pair of replacment window hinges are suitable for side hung frames with the window handle on the side of the frame and friction stays top and bottom.
- Suitable for uPVC or Timber Window Frames
- Austenitic Stainless Steel Excellent corrosion resistance in many environments
- Gives maximum exit clearance.
- BSI approved.
- BBA approved.
- SBD accredited.
- Suitable for Document Q.
- Sold in Pairs

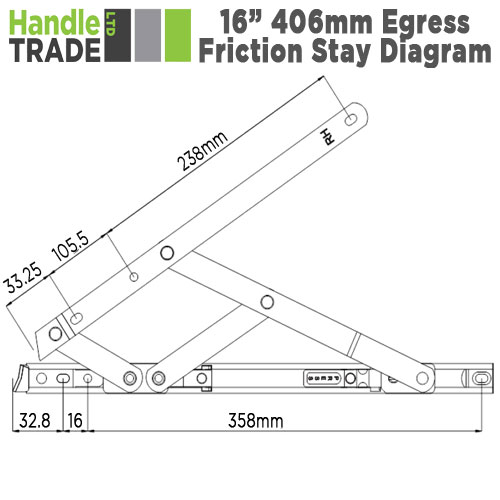

Dimensions
- Length: 406mm (16")
- Stack Height: 13mm (Stay Thickness)
- Width: 16mm (Euro Groove Width)
- Max Vent Weight: 24 Kg
- Max vent Height: 700mm
- Opening Angle: 88°
| Brand: Elite |
