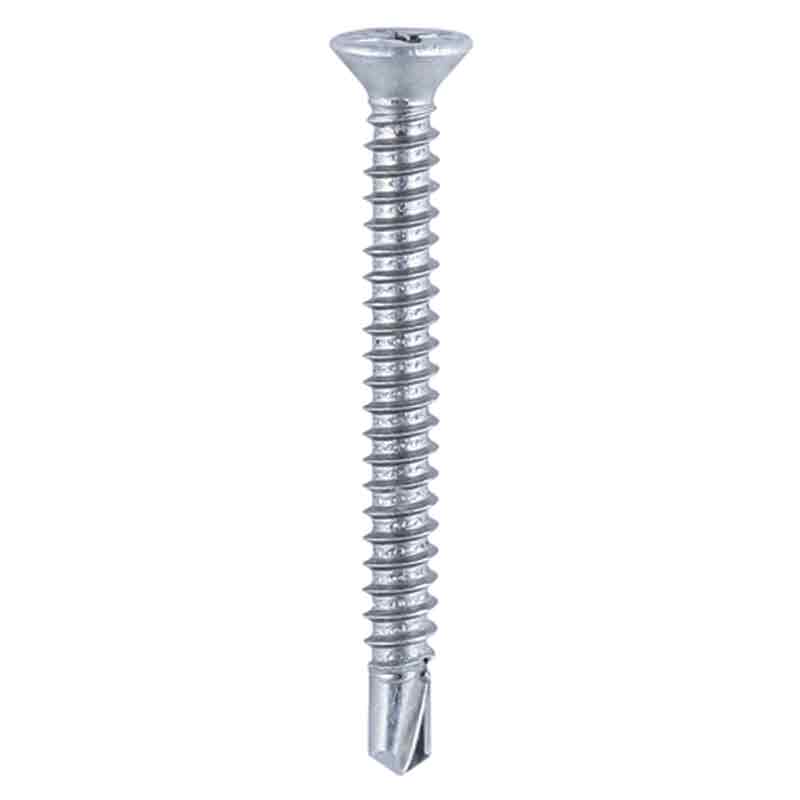

Window Fabrication Screw - Self-Drilling 3.9 x 16mm

Window Fabrication Screws - Self-Drilling Hardware and Metal Reinforcement 3.9 x 16mm

Multiple uses for fitting a variety of hardware to frames where there is a steel or aluminium reinforcement present. Countersunk head with ribs under head for improved countersinking.

• Brand TIMCO
• Corrosion Rating (1-5) 2 - Occasionally damp/wet, rural and sheltered areas
• Driver Bit Size PH2
• Finish Zinc & Yellow
• Head Type Countersunk with Ribs
• Material Carbon Steel
• MDT (mm) 2.5
• MOQ 1
• MOQ Increment 1
• Pack Dimensions L x W x H (mm) 135 x 90 x 60
• Pack Qty 1000
• Pack Type Box
• Pack Weight (kg) 0.96
• Point Type Self-Drilling
• Recess Type Phillips
• Size (mm) 3.9 x 16
• Thread Coverage Fully Threaded
• Thread Type Self-Tapping


Dimensions

• Length: 16mm
• Diameter: 3.9mm
• Head: PH2
