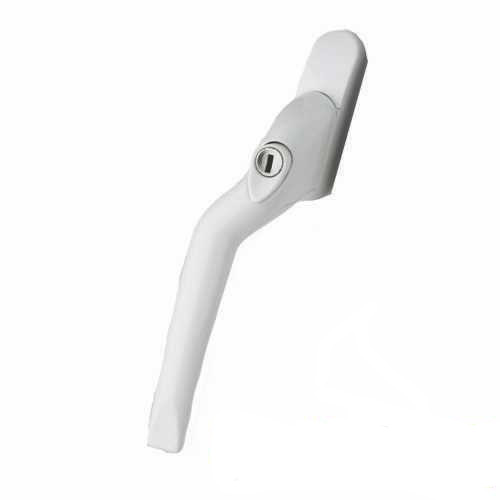

ProLinea Left Hand Curve Window Espag Handle with a 40mm Spindle
The Curve™ is the latest edition to the ProLinea espag handle family. Its subtle sweeping lever has been designed to perfectly compliment todays modern profile systems and homes.
The ProLinea Curve™ espag handle, designed by Mila’s inhouse product design team, is part of Mila’s suited window and door furniture range.
This elegant window handle features Mila’s signature edgeto-edge screw cover on the handle rose, which is design registered, for enhanced aesthetics.
The handle rose cleverly conceals an internal 90 degree stop which prevents espag gearbox over-stressing.
An ergonomic push button and finger grips on the lever provide optimum comfort during use.
The ProLinea Curve™ espag handle is a locking handle that, with the insertion of colour-coded key plugs, can be easily converted into push button and green button egress versions for emergency exit requirements
Manufactured from a high performance zinc alloy, The Curve™ has been independently tested to 500,000 cycles which is more than twenty times the standard requirement to ensure operational reliability. It is supplied with a ten year mechanical warranty.
The handle is available in pin lengths 9mm, 15mm, 20mm, 25mm, 30mm, 40mm and 55mm and comes complete with fixing screws as standard.
The ProLinea Curve™ is suitable for PVCu, timber and aluminium window systems and is available in 6 suited finishes - polished gold, polished chrome, brushed satin chrome, smokey chrome, white and black which all suite with Mila door hardware products.
Additional keys are available.
- Cranked / Curved Profile
- 40mm Spindle
- Locking Window Handle
- Key and Cover Cap Included
- Fixings Included
Dimensions
- Lever Length: 135mm
- Width: 17.5mm
- Projection: 55mm
- Spindle Length: 40mm
