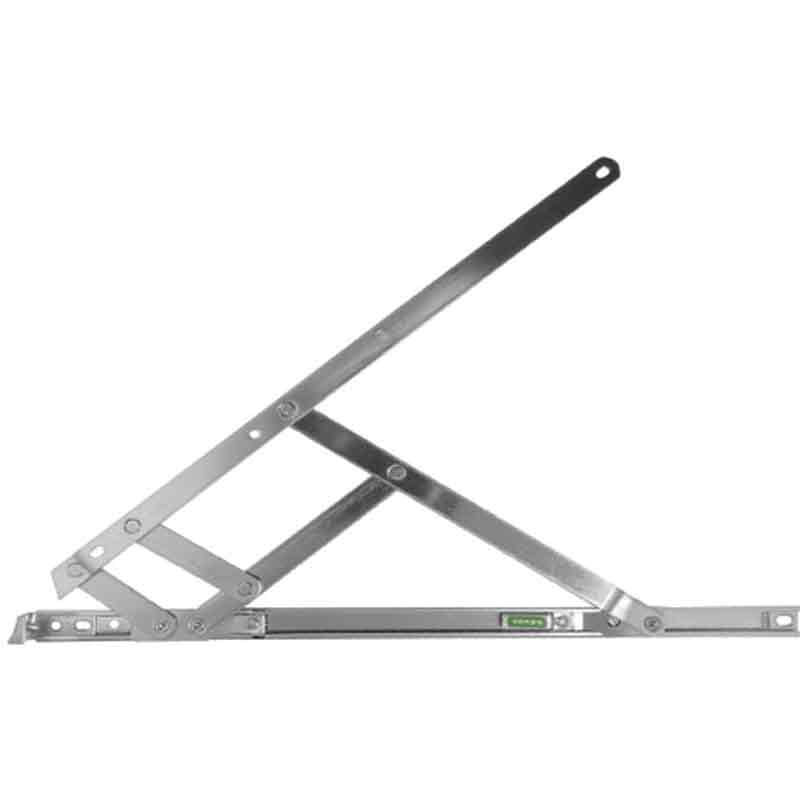

16" Elite Tri Stay Friction Hinge Side Hung 13mm Stack Height
The Elite Tri-Stay premium friction stay covers fire escape, easiclean and safety restrictor all in one, with high security and improved weather sealing. It is strongly recommended that safety restrictors are used in pairs.
This pair of replacment window hinges are suitable for side hung frames with the window handle on the side of the frame and friction stays top and bottom.
- Suitable for uPVC or Timber Window Frames
- Fire escape as standard.
- Easiclean function as Standard.
- Available in both Ferritic and Austenitic Steel Options.
- Full Egress as standard.
- Safety restriction as standard.
- Super smooth Easiclean operation.
- BSI approved.
- BBA approved.
- SBD accredited.
- Suitable for Document Q.
- Sold in Pairs

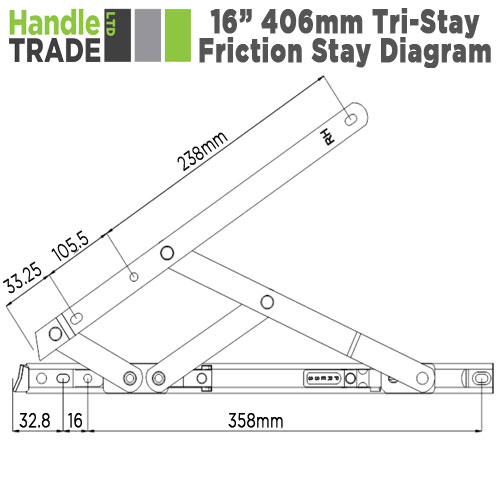

Dimensions
- Length: 406mm (16")
- Stack Height: 13mm (Stay Thickness)
- Width: 16mm (Euro Groove Width)
- Max Vent Weight: 24 Kg
- Max vent Height: 750mm
- Opening Angle: 85°
- Restricted Angle: 12°
