TBT Repair Gearbox - Siegenia

https://www.handletradeltd.co.uk/web/image/product.template/67579/image_1920?unique=cb6305c
(0 review)

£ 15.00 15.0 GBP £ 15.00 VAT Excluded

£ 22.50 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Brand: Siegenia
    Pull Handle Screw Centres: 43mm

    Terms and Conditions
    Shipping: 2-3 Business Days

    **Bulk Buy Offer**

    5 x £12.50 +vat
    10 x £10.00 + vat

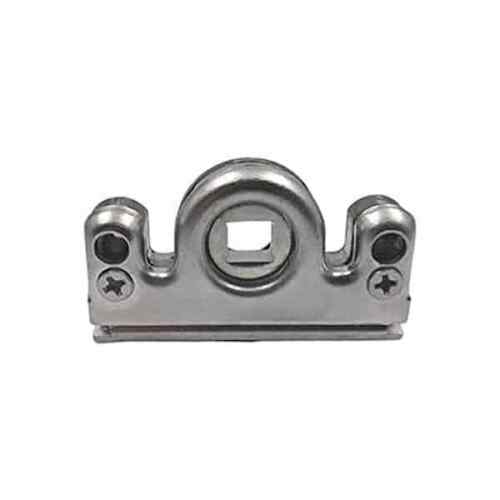

    TBT Repair Siegenia Gearbox

    The ideal solution for the repair of old and no longer available Siegenia window gears.
    Siegenia screw housing suitable for many Siegenia gearboxes from the FAVORIT series as a spare part. The gear shells are connected with metric PH screws (PH1), so you only need a PH1 bit or screwdriver (not included).
    The screw housings are supplied with center fixing as mounting aid. That is, the gears are fixed for mounting in the rotational position. After installation, a breakage point breaks during initial operation and the gearbox can be used freely.
    Please note that the hole bar in which the gear engages is still usable. If it is badly worn, the gear can no longer grasp it properly and move it reliably.
    - For Siegenia Favorit gearbox in the middle and constant with backset 16 mm
    - Non-Handed
    - For gearbox series FAVORIT 3 & 23
    - Center fixing as mounting aid
    - Suitable for many Siegenia transmissions as spare parts

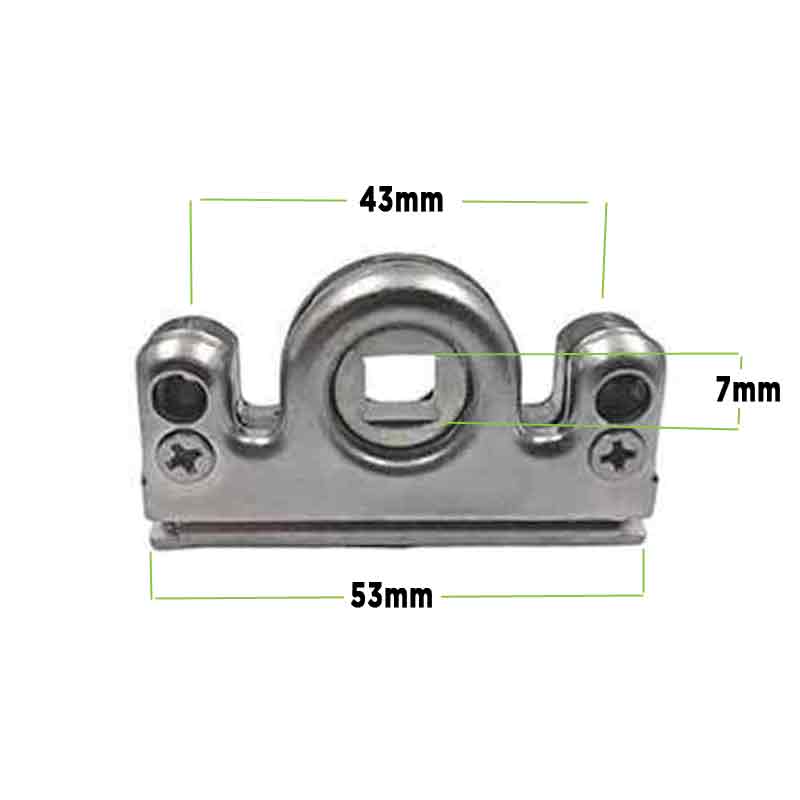

    Dimensions

    • Lever Length: 53mm
    • Spindle Size: 7mm
    • Screw Centre: 43mm
