Square Timber Door Pivot Hinge Set - 304S

https://www.handletradeltd.co.uk/web/image/product.template/13325/image_1920?unique=af0d558
(0 review)

£ 35.86 35.86 GBP £ 35.86 VAT Excluded

£ 35.64 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Colour: Satin Stainless

    Terms and Conditions
    Shipping: 2-3 Business Days

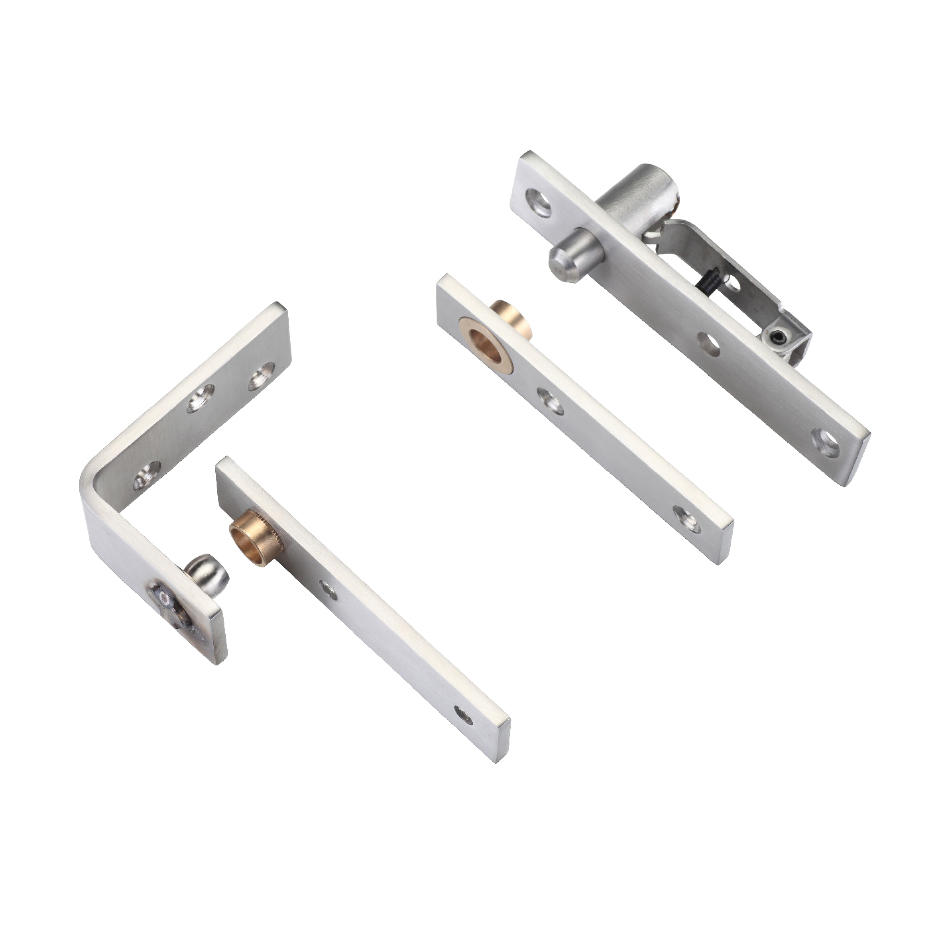

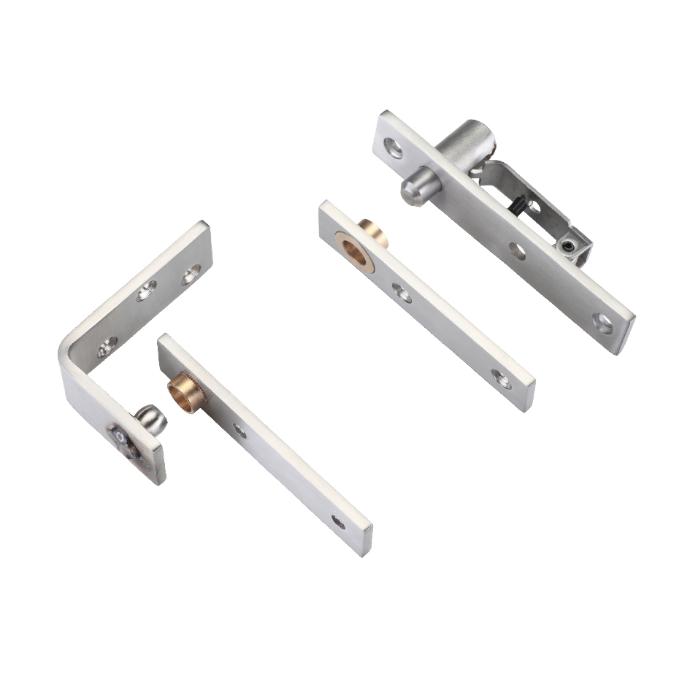

    Square Pivot Hinge Set - 304S

    A quality 304 grade stainless steel timber door pivot hinge. Supplied with fixings.

    • Grade 304 Stainless steel
    • Designed to allow the door to open outwards in the case of an emergency
    • Use with VSER01 - Pivot Emergency Release Door Stop
    • Maximum door weight 80kg

    Dimensions

    • Top door plate - 110 x 25 x 5mm
    • Top frame bracket - 130 x 25 x 5mm
    • Bottom door plate - 110 x 25 x 5mm
    • Bottom frame bracket - 81 x 58 x 32 x 5mm
