Size 3-6 Door Closer c/w Back Check & Delayed Action

Size 3-6 Door Closer c/w Back Check & Delayed Action

Size 3-6 Door Closer Comes With Back Check & Delayed Action - Flat Arm and Body (P.A BRACKET INC) Semi Radiused Cover

• Power size 3-6 (size 3 by template position size 4,5 and 6 by template position/ spring adjustment)
• Aluminium
• Scissor/ Steel
• Closing speed, latching speed
• Backcheck/ delayed action
• 120kgs (door mount pull) 100kgs (door mount push, frame mount push)
• 1400mm (door mount pull) 1250mm (door mount push, frame mount push)
• Successfully tested in accordance with the requirements of BS EN1154: 1997
• Successfully fire tested in accordance with the requirements of BS EN1634-1, suitable for use on 30,60,90 and 120 minute timber fire doors
• Semi-radiused

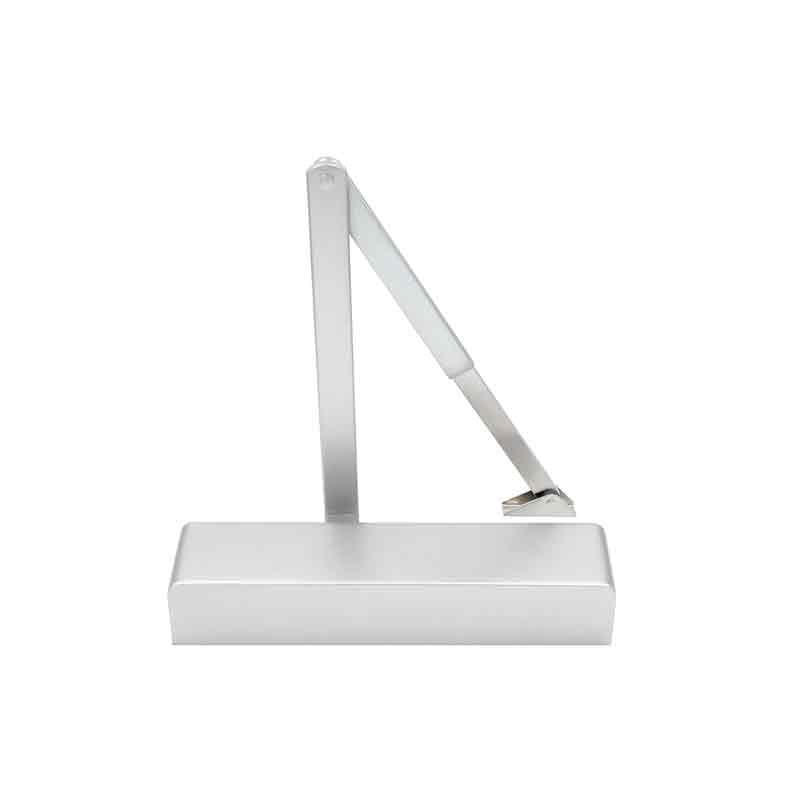

• Silver (SE)
• Satin Stainless (SSS)

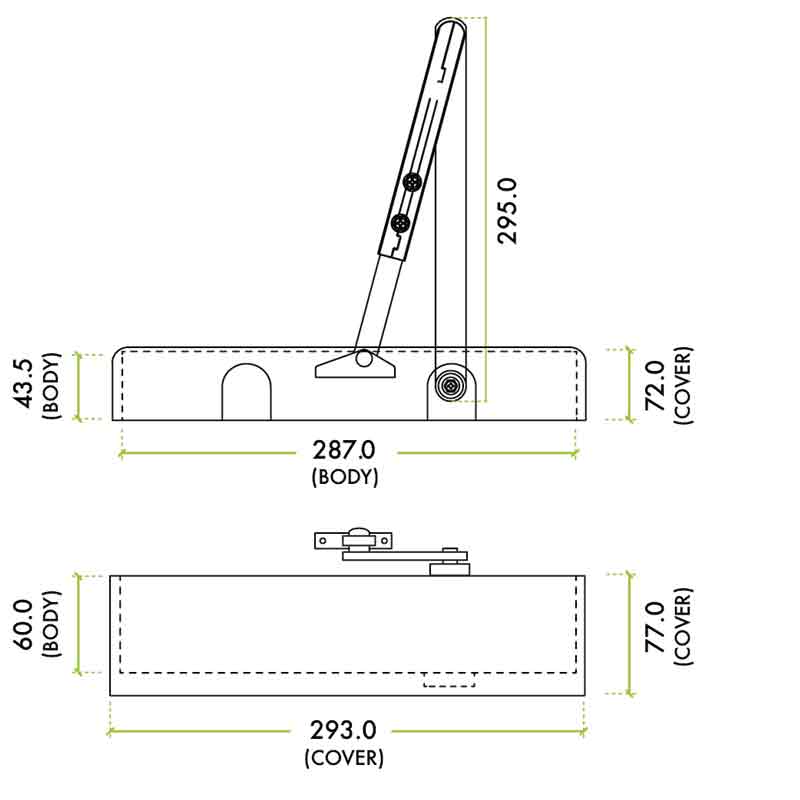

Dimensions

• Width: 287mm
• Height: 43.5mm

Click to Download Spec Sheet
