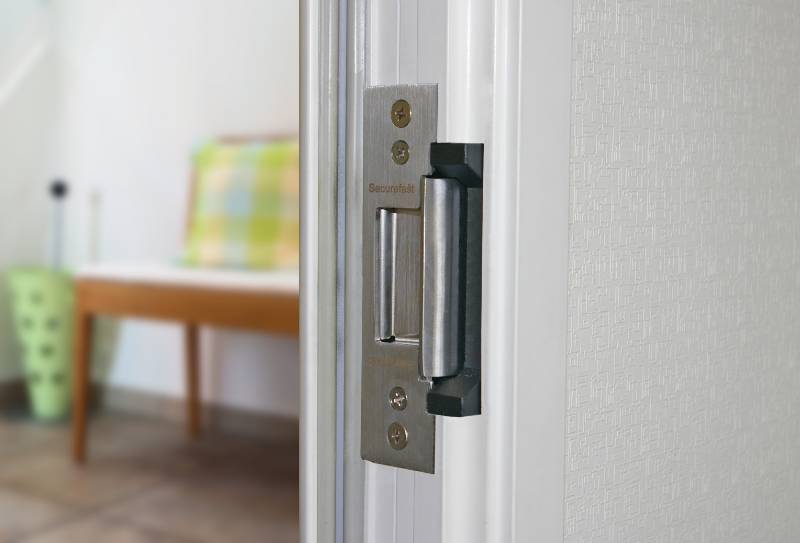

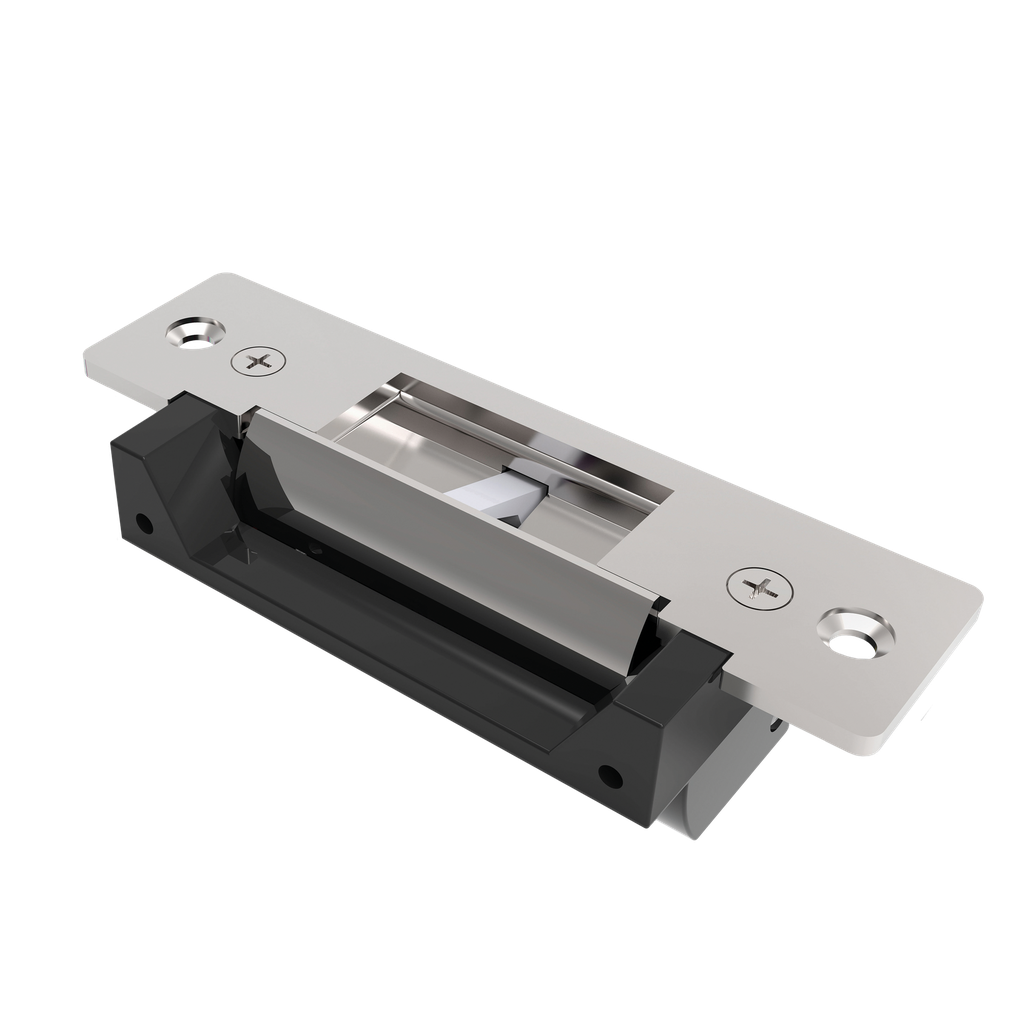

Securefast Electric Release 12v / 24v
The AL900 series of Securefast electric releases are designed to work with most leading brand deadlocking night latch locks. Each electric release is supplied as fail secure operation but can easily be changed to fail safe operation with the simple removal of a screw.
- 1000lbs / 434kg holding force
- For use with mortice nightlatch locks
- 30 minute fire rating* on inward and outward opening timber doors – Warrington Fire Report No. 419607
- 60 Minute fire rating on timber doors – Independent test report with GE Door Manufacturer
- Performance tested to EN14846
- For use on timber and metal doors
- CE marked
- EMC tested
- Easy to install
- 12/24V AC/DC – on site selectable (reconfigure wires in a different order)
- AC - Fail secure only selectable
- DC - Fail safe or fail secure selectable (changed by a simple screw removal)
- Power consumption:
- 12V DC - 280mA
- 24V DC - 140mA
- Long and short faceplates are included
- A good replacement for most leading brand ANSI electric strikes/releases
- Includes 250mm of cable
- 10mm, 25mm & 50mm extension lips are also available for use with the AL900 series electric releases
- Stainless steel
- Dimensions: 201.5mm x 32mm x 33mm
Dimensions
- Faceplate Length: 124mm
- Screw Centers: 105mm
- Faceplate Width: 32mm
