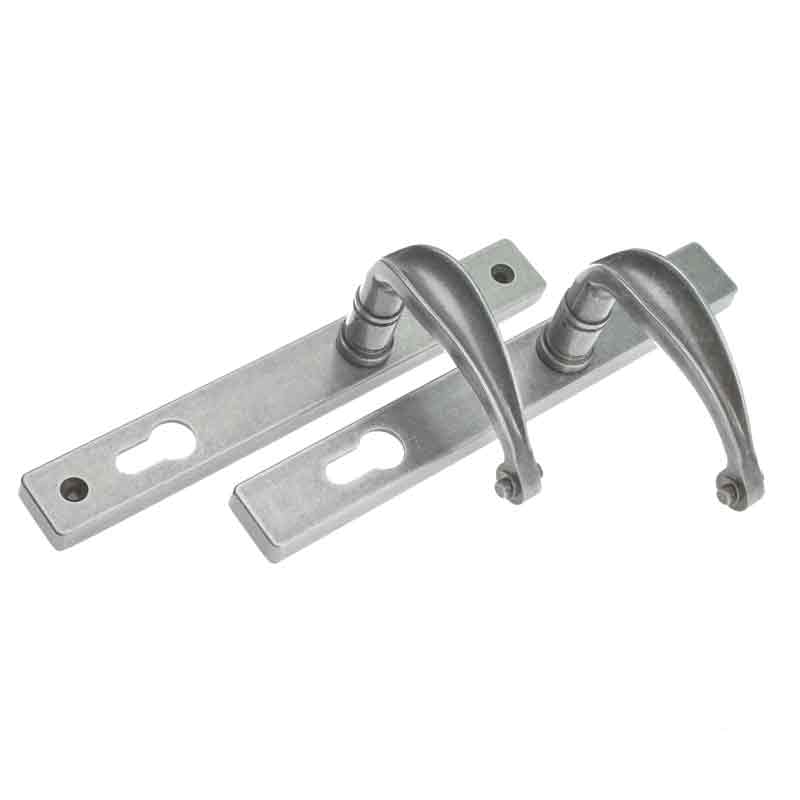

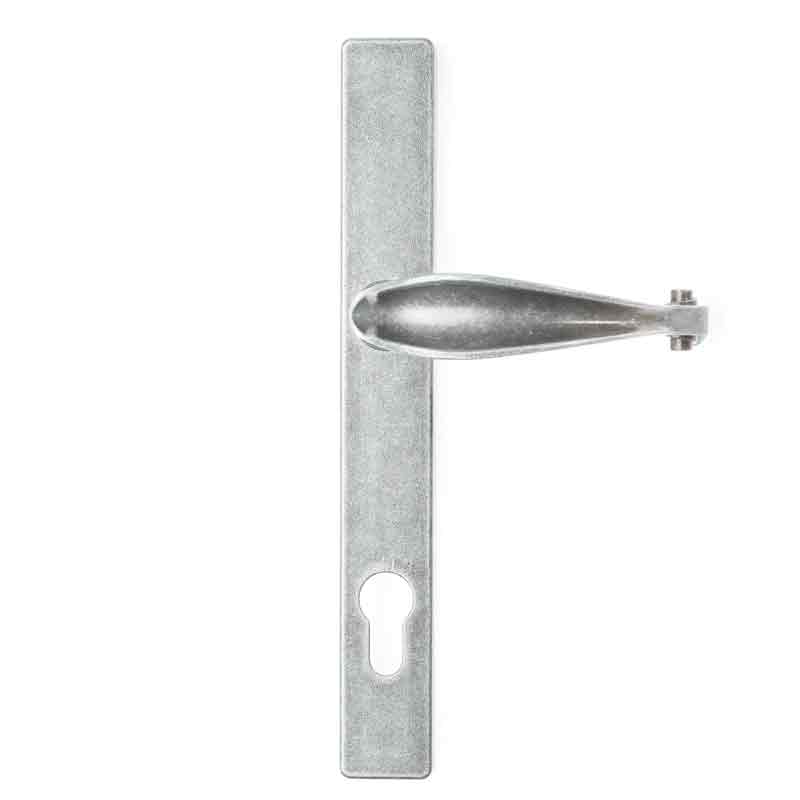

PZ92 Regal Sprung Inline Lever Lever Door Handle
The sculptured inline lever lever door handle has been developed to replicate traditional forged hardware in appearance and durability. Designed to operate a Multi Point Lock with a Euro Cylinder, the handles screw fixings are located above the lever and at the bottom of the backplate to fit locks with a screw hole dimension of 211mm. The sculptured handle has been designed with a 32mm wide backplate for new doors or replacing handles on existing doors.
- 92mm PZ Centre(s).
- 211mm Screw Hole Distance.
- 243mm Faceplate Length.
- 32mm Faceplate Width.
- 1x 8mm Spindle Supplied.
- Suits Composite uPVC or Timber Doors with a multipoint lock
- Long baseplate with screw positions to suit most locks
- Ergonomic contemporary lever and low friction nylon bush, easy to grip and smooth action
- Supplied with screw/ spindle pack to suit Timber/ Composite profiles
- Colour coordinated screw heads; matching hardware, down to the smallest detail
- Wide backplate
- Sprung lever

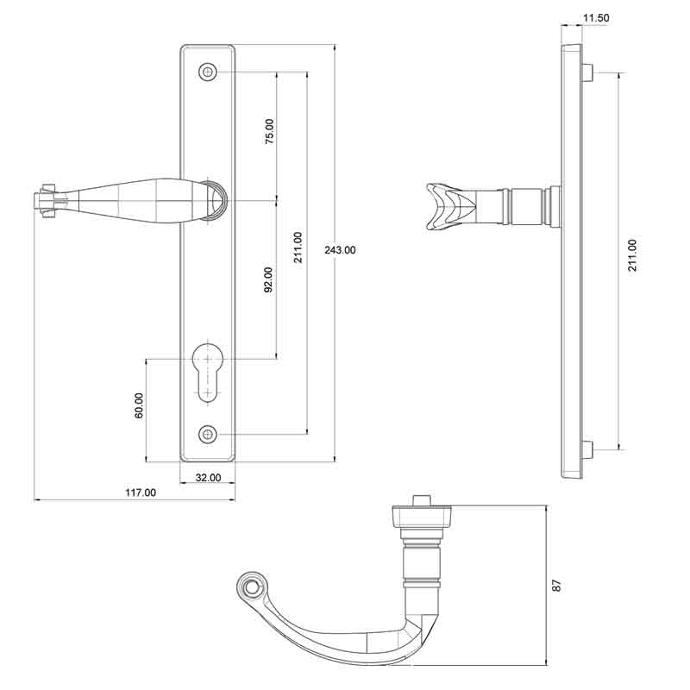

Dimensions
- PZ Size: 92mm
- Screw Centres: 211mm
- Spindle Size: 8mm
- Backplate Length: 243mm
- Backplate Width: 32mm
