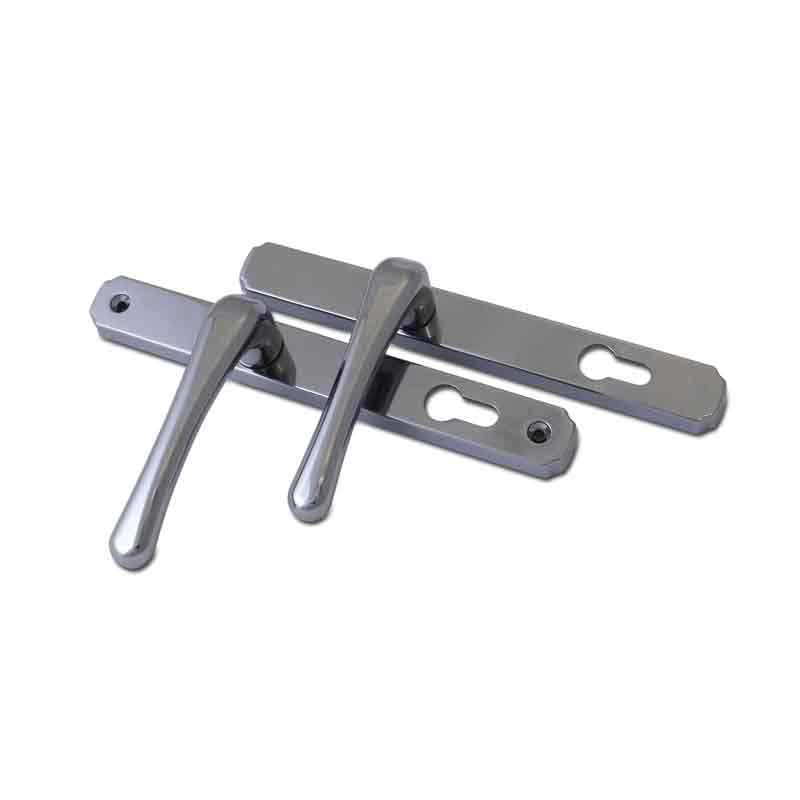

PZ92 Traditional Heritage Sprung Inline 240mm Handle

Heritage Sprung Inline Lever Lever Door Handle PZ92

The Heritage Inline Sprung Lever Lever Door Handle is designed to operate a Multi Point Lock with a Euro Cylinder. The handles screw fixings are located above the lever and at the bottom of the backplate to fit locks with a screw hole dimension of 211mm. The Heritage handle has been designed with a 32mm wide backplate for new doors or replacing handles on existing doors.

• 92mm PZ Centre(s).
• 211mm Screw Hole Distance.
• 242mm Faceplate Length.
• 32mm Faceplate Width.
• 1x 8mm Spindle Supplied.
• Suits Composite, uPVC or Timber Doors with a multipoint lock
• Long baseplate with screw positions to suit most locks
• Ergonomic contemporary lever and low friction nylon bush, easy to grip and smooth action
• Supplied with screw/ spindle pack to suit PVCu profiles - all parts to hand
• Colour coordinated screw heads; matching hardware, down to the smallest detail
• Heritage common baseplate; for an unrivalled range and suited design options

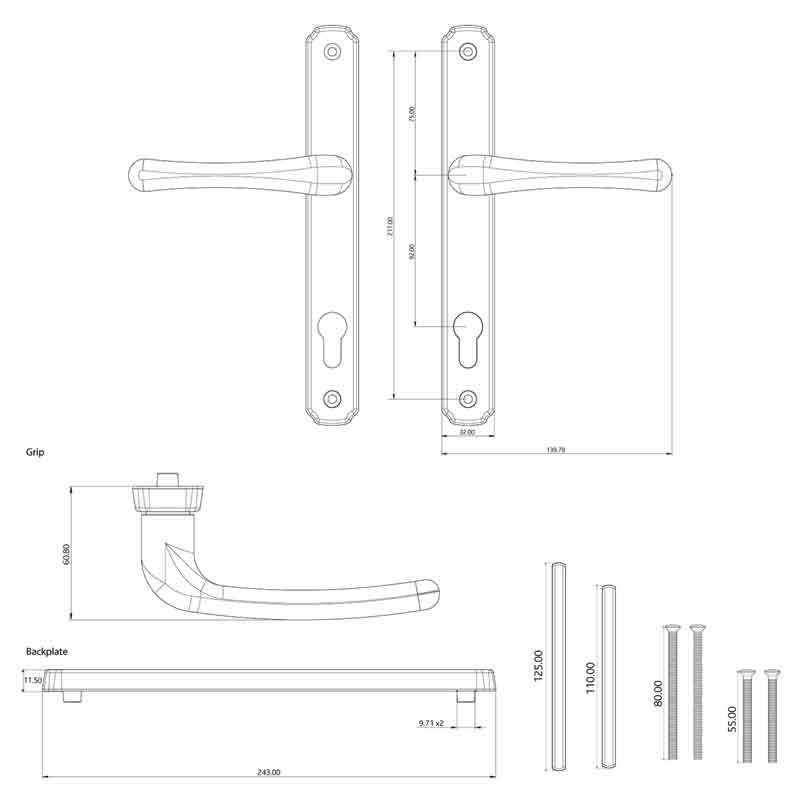

Dimensions

• PZ Size: 92mm
• Screw Centres: 211mm
• Spindle Size: 8mm
• Backplate Length: 242mm
• Backplate Width: 32mm
