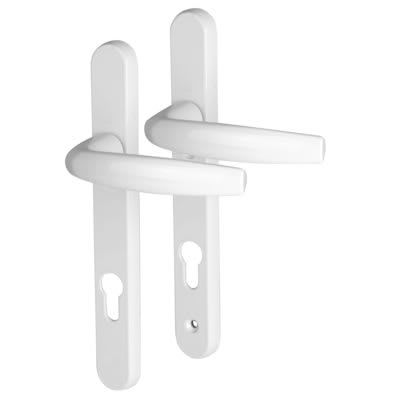

Hoppe Atlanta Lever 240mm Backplate 122mm Screw Centers
HOPPE aluminium Lever handle set on narrow backplate for profile doors:
- Tested to DIN EN 1906: 26-0040A
- Bearing: fixed/movable handles, spring cassettes, maintenance-free slide bearing
- Connection: HOPPE solid spindle
- Backplates: supporting lugs
- Fixing: visible inside, bolt-through, M5 thread screws
- Fixings included

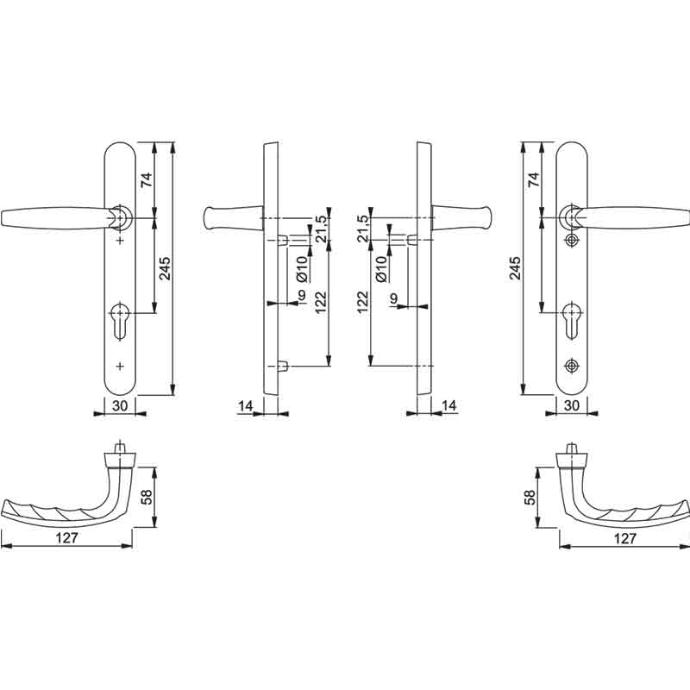

Dimensions:
- Backplate: 240mm
- Screw Centers: 122mm
- Spindle to Euro Lock: 92mm
- Spindle Size: 8mm
