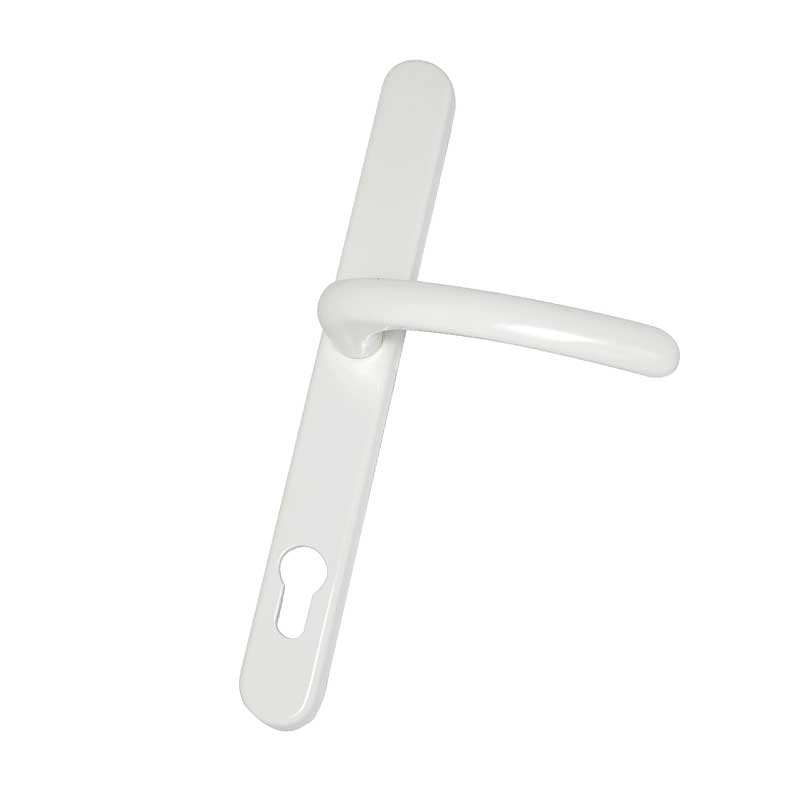

PZ92 Blenheim 240mm Screw Centers 270mm Back Plate Inline 44mm Door Thickness
The Blenheim Inline Sprung Lever Lever Door Handle is designed to operate a Multi Point Lock with a Euro Cylinder. The handles screw fixings are located above the lever and at the bottom of the backplate to fit locks with a screw hole dimension of 240mm. The Blenheim has been designed with a longer 29.5mm wide backplate for new doors or replacing handles on existing doors.
Suitable for PVCu, Timber, Aluminium and Composite doors, Blenheim is available in a range of finishes as part of the Perfectly Matching Home range, that includes Hardex Chrome, Hardex Bronze, Hardex Gold, Antique Black and White, The Hardex Electro finish is amongst the more resilient and attractive in the world today and is perfectly matching not only in colour but in form as well - we focus on even the smallest details to ensure your home has a full suite of hardware. Alongside stunning looks, our door handles have been tested to the highest technical standards and meet the requirements of PAS 24:2012 on most door systems to confidently ensure the door security performance. All finishes meet the requirements of BS EN 1670 Grade 5 (480 hours) for Corrosion Resistance to provide the most robust finish for your hardware; and to ensure smooth and consistent performance over time the handle is endurance tested in our test house to excess of 200,000 cycles.
- Solid die cast zinc construction for a sturdy feel
- Extra long baseplate with screw positions to suit most locks
- Ergonomic lever and low friction nylon bush, easy to grip and smooth action
- Supplied with screw/ spindle pack to suit PVCu profiles - all parts to hand
- Colour coordinated screw heads; matching hardware, down to the smallest detail
- Blenheim common baseplate; for unrivalled range options

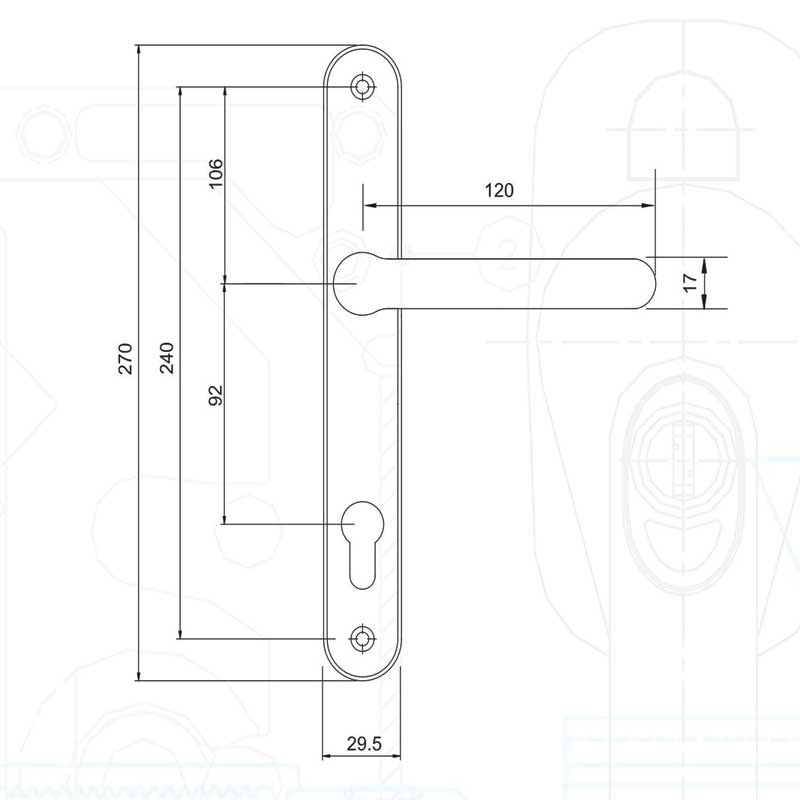

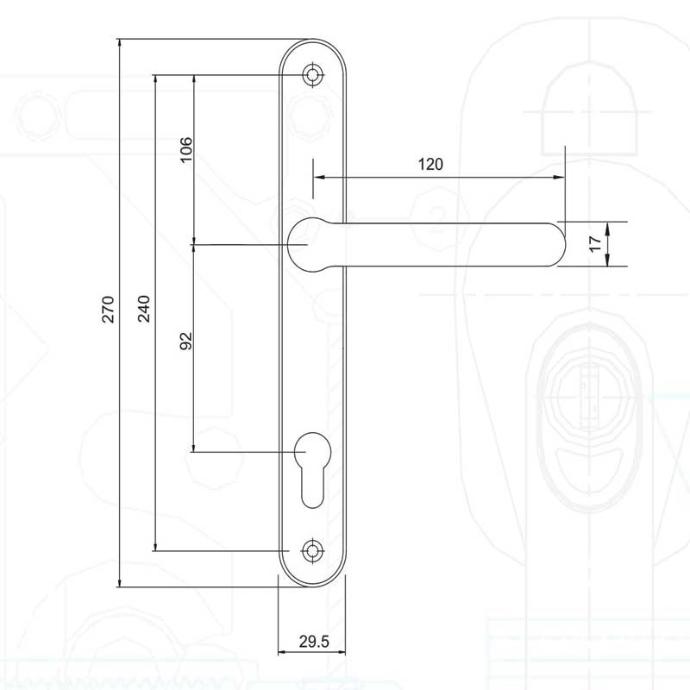

Dimensions
- Lever Length: 270mm
- Screw Centers: 240mm
- Width: 29.5mm
- Spindle to Cylinder Length: PZ92 ( 92mm )
