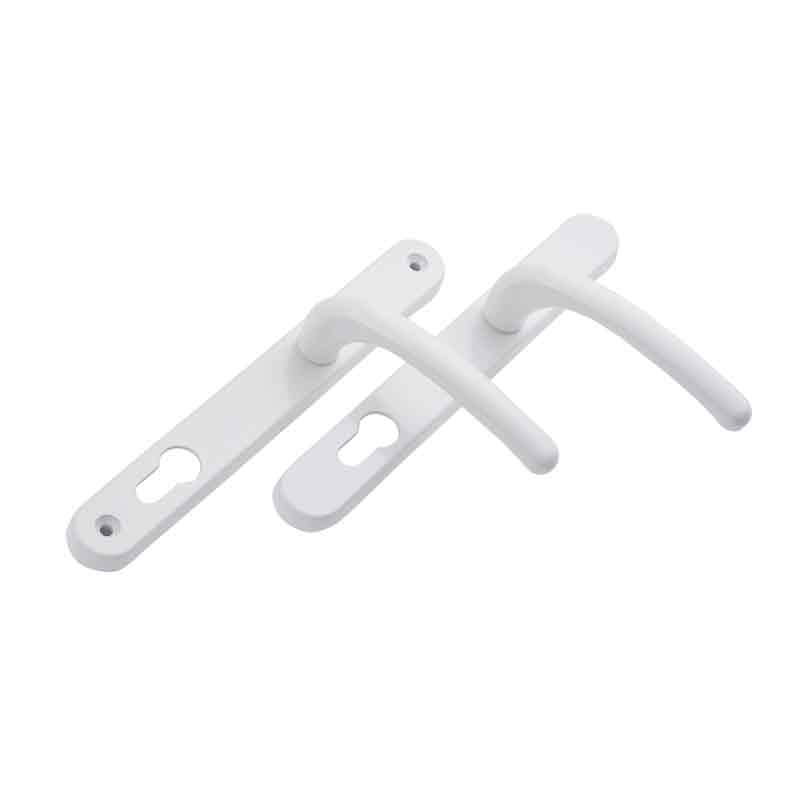

Balmoral Sprung Inline Lever Lever Door Handle PZ92
The Balmoral Inline Sprung Lever Lever Door Handle is designed to operate a Multi Point Lock with a Euro Cylinder. The handles screw fixings are located above the lever and at the bottom of the backplate to fit locks with a screw hole dimension of 211mm. The Balmoral has been designed with a longer 32mm wide backplate for new doors or replacing handles on existing doors.
- 92mm PZ Centre(s).
- 211mm Screw Hole Distance.
- 242mm Faceplate Length.
- 32mm Faceplate Width.
- 1x 8mm Spindle Supplied.
- Suits Composite, uPVC or Timber Doors with a multipoint lock
- Long baseplate with screw positions to suit most locks
- Ergonomic contemporary lever and low friction nylon bush, easy to grip and smooth action
- Supplied with screw/ spindle pack to suit PVCu profiles - all parts to hand
- Colour coordinated screw heads; matching hardware, down to the smallest detail
- Heritage common baseplate; for an unrivalled range and suited design options

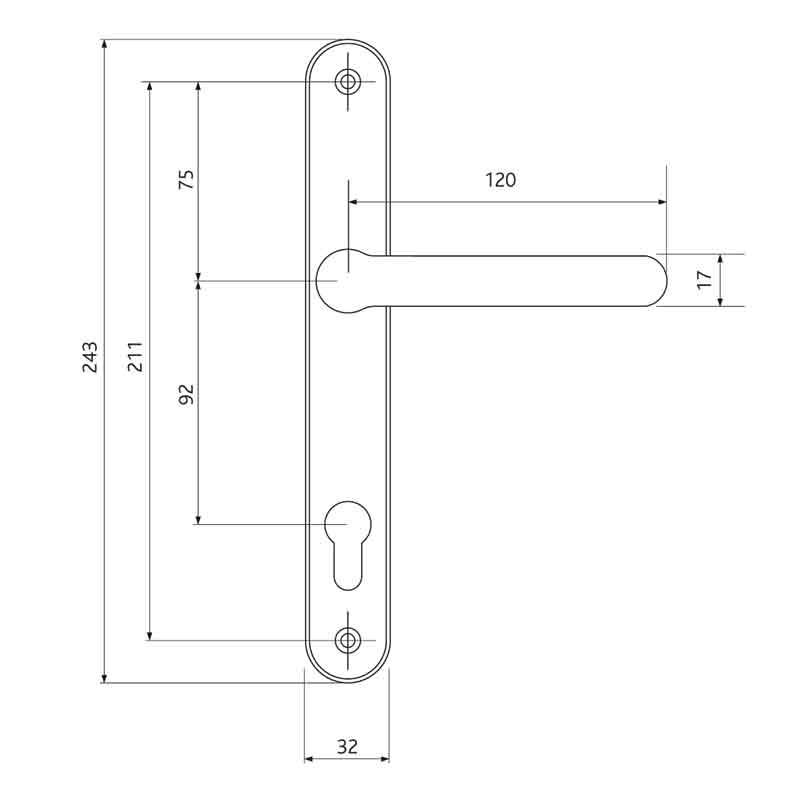

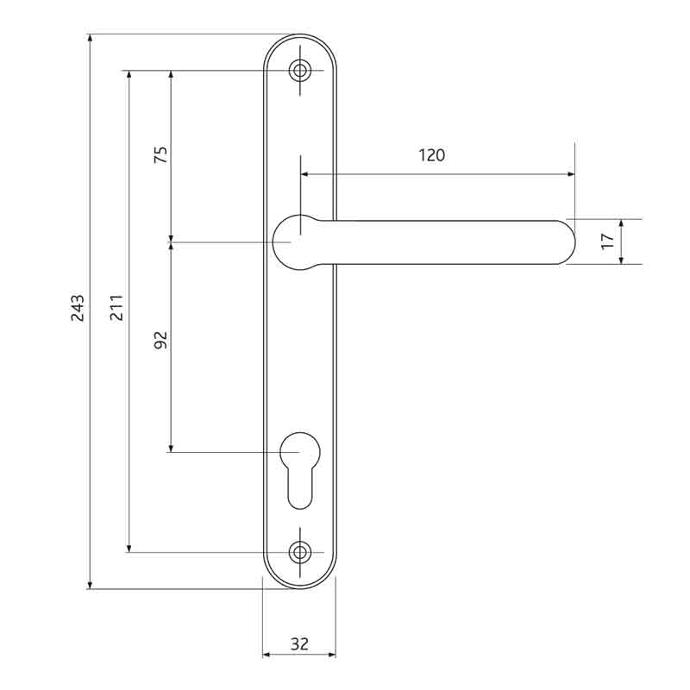

Dimensions
- PZ Size: 92mm
- Screw Centres: 211mm
- Spindle Size: 8mm
- Backplate Length: 242mm
- Backplate Width: 32mm
