PZ92/62 Hoppe Atlanta 240mm 215cc Lever/Pad Offset

https://www.handletradeltd.co.uk/web/image/product.template/69026/image_1920?unique=57b77a6
(0 review)

£ 30.39 30.39 GBP £ 30.39 VAT Excluded

£ 30.39 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Colour: White
    Brand: Hoppe
    Spindle to Cylinder Size: PZ 92/62mm
    Pull Handle Screw Centres: 215mm

    Terms and Conditions
    Shipping: 2-3 Business Days

    Hoppe Atlanta Lever Pad 240mm Backplate 215mm Centers

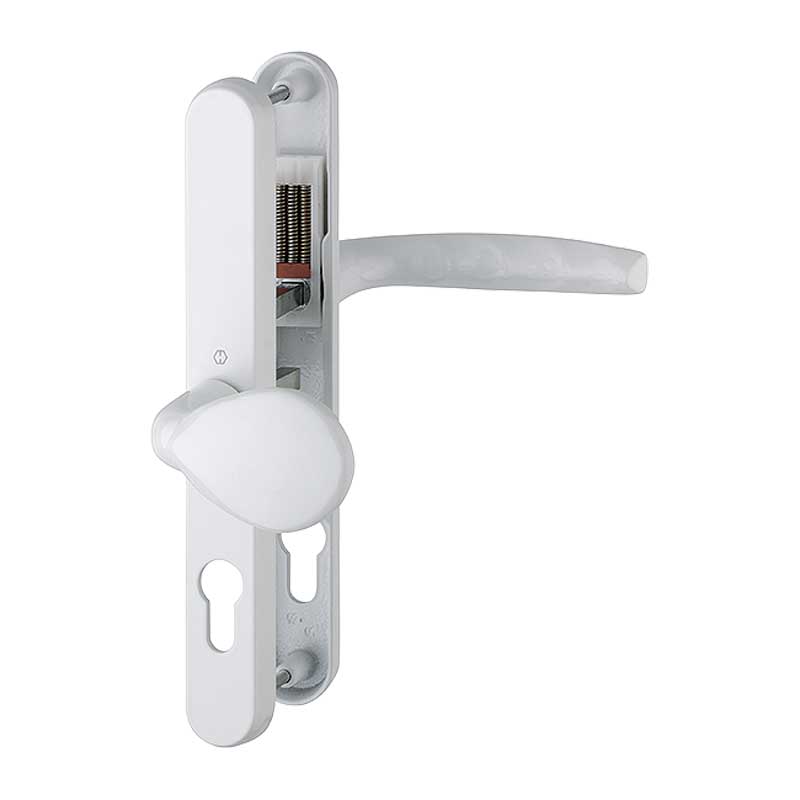

    HOPPE aluminium knob (pad)/handle set on narrow backplate for profile doors:

    • Bearing: cranked knob on the outside; sprung fixed/movable door handle on the inside, maintenance-free slide bearing
    • Connection: HOPPE solid spindle
    • Backplates: supporting lugs
    • Fixing: visible inside, bolt-through, M5 thread screws
    • Fixings included

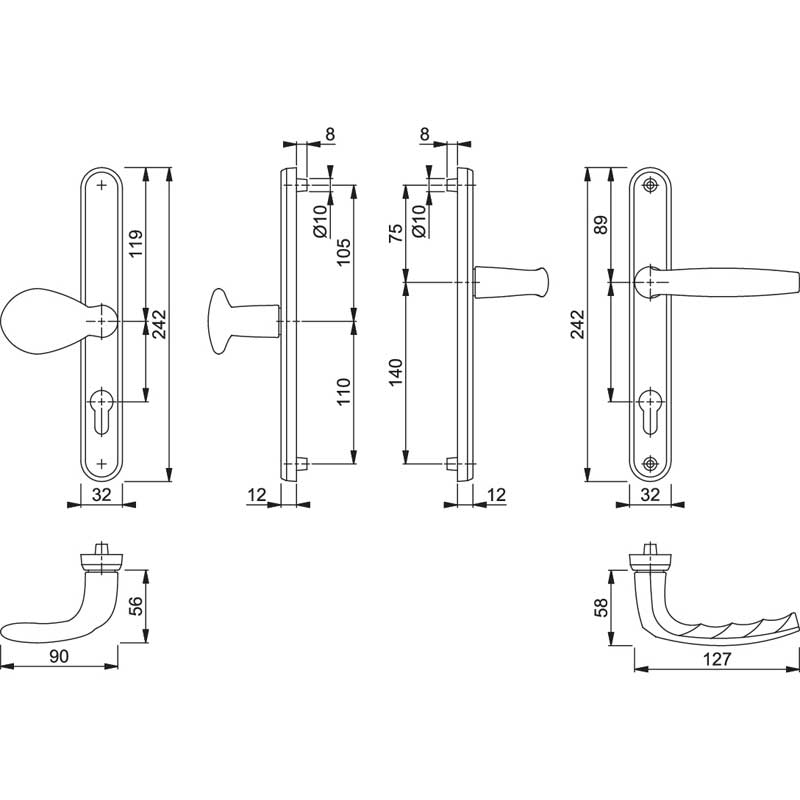

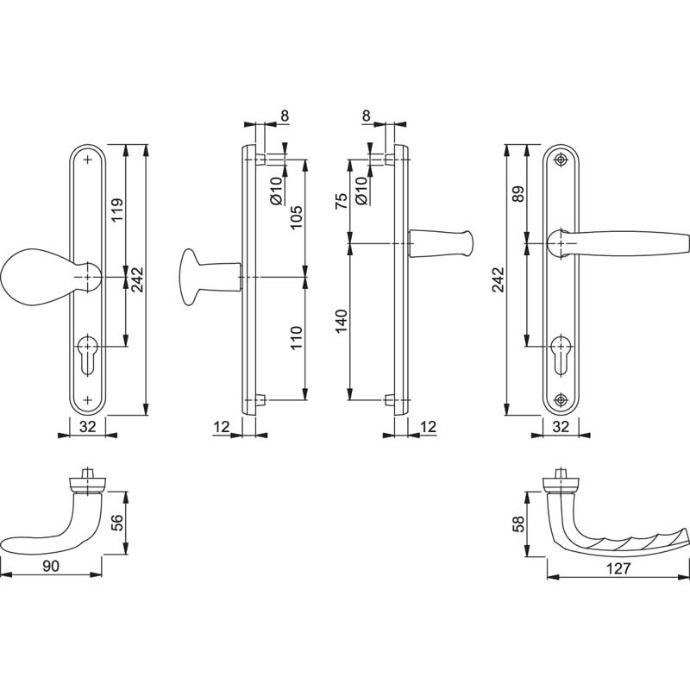

    Dimensions:

    • Backplate: 240mm
    • Screw Centers: 215mm
    • Spindle to Euro Lock: 92mm (outside) 62mm (inside)
    • Spindle Size: 8mm

    Click To Download Data / Product Sheet
