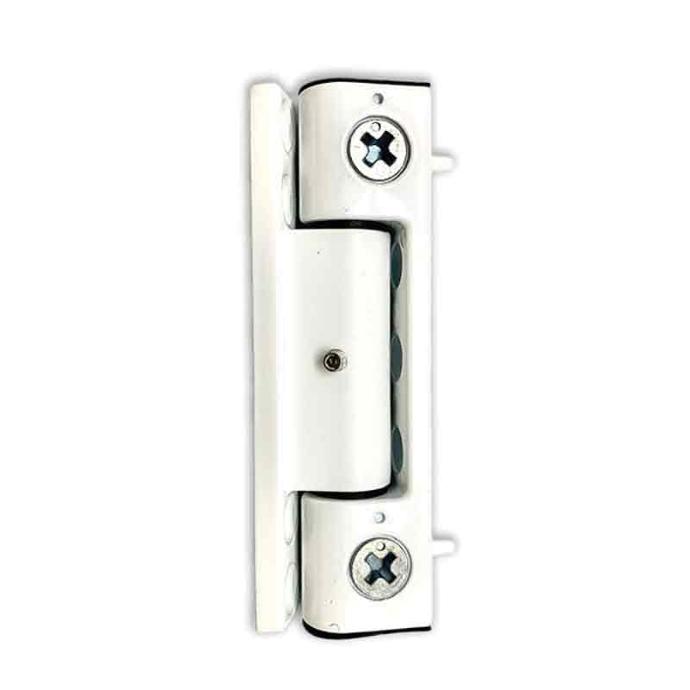

Yale Neon Pencil Butt PVC Hinge - 0 degree 100mm
This Yale uPVC pencil butt hinges are the oldest style of hinge, typically found on older uPVC doors, but still common today. This 100mm external butt hinge features a security hinge pin with concealed grub screw, which prevents the pin from being removed, to provides you peace of mind. With 3 Angled profiles to suit the fitting to you pvc door be sure to choose the right option
- 4mm horizontal adjustment without affecting compression and without having to remove the door sash from the frame
- Simple screwdriver adjustment
- Strong enough to carry 80kg per hinge
- External hinges fitted with security grub-screw to prevent removal of pin
- Available to suit profiles with bevel angles of 0 (flat), 5 and 15 degrees
Dimensions
- Length: 100mm
- Width: 16mm
- Profile Angle: 0 degrees
- Projection: 23mm
- Adjustment: -2 to +2mm
