Pencil Butt Hinge - Flat 115mm with 2D adj

https://www.handletradeltd.co.uk/web/image/product.template/13361/image_1920?unique=cb6305c
(0 review)

£ 11.40 11.4 GBP £ 11.40 VAT Excluded

£ 11.40 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Brand: Avocet

    Terms and Conditions
    Shipping: 2-3 Business Days

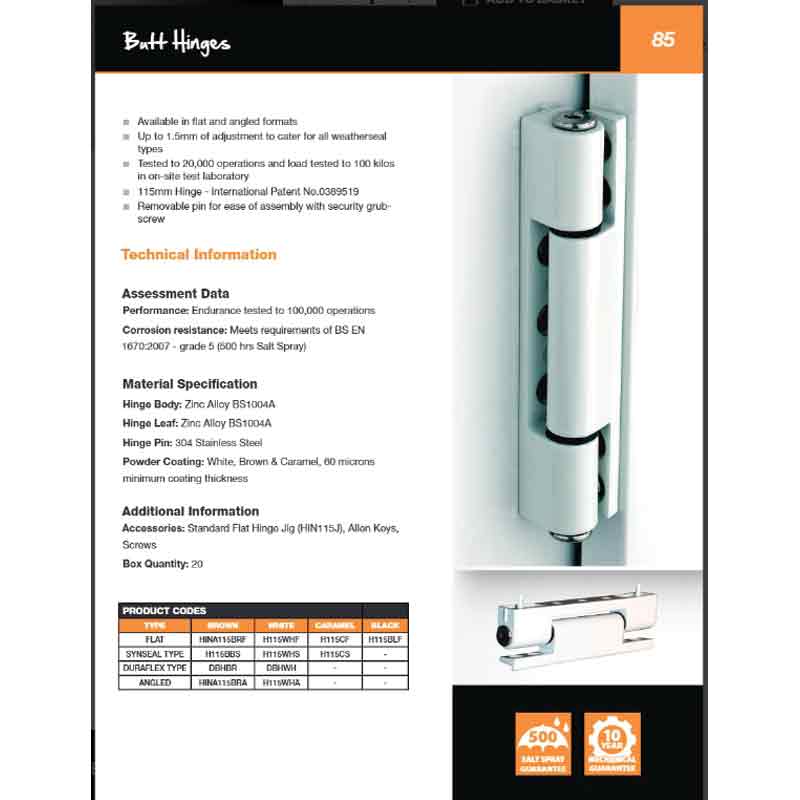

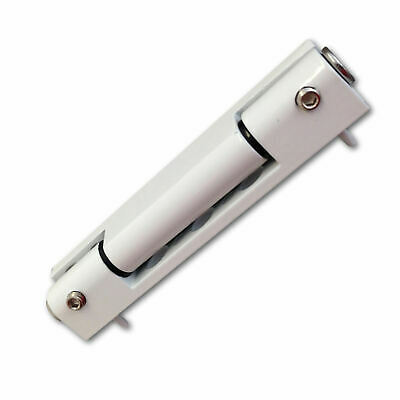

    Avocet uPVC Pencil Butt Hinge - 0 degree 115mm

    This Avocet uPVC pencil butt hinges are the oldest style of hinge, typically found on older uPVC doors, but still common today. This 115mm external butt hinge features 2 security hinge pin with concealed grub screw, which prevents the pin from being removed, to provides you peace of mind. With 2 Angled profiles to suit the fitting to you pvc door be sure to choose the right option

    • Available in flat and angled formats
    • Available in formats to suit Duraflex and Synseal Shield profiles
    • Up to 1.5mm of adjustment to cater for all weatherseal types
    • Tested to 20,000 operations and load tested to 10 kilos
    • 115mm Hinge – International Patent No. 0389519
    • Removable pin for ease of assembly with security grubscrew

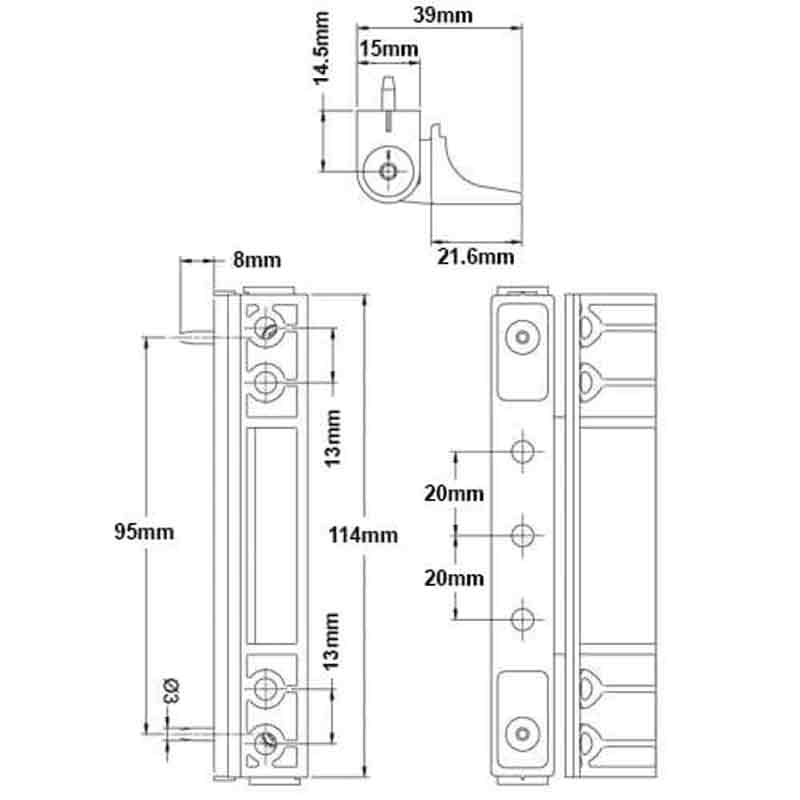

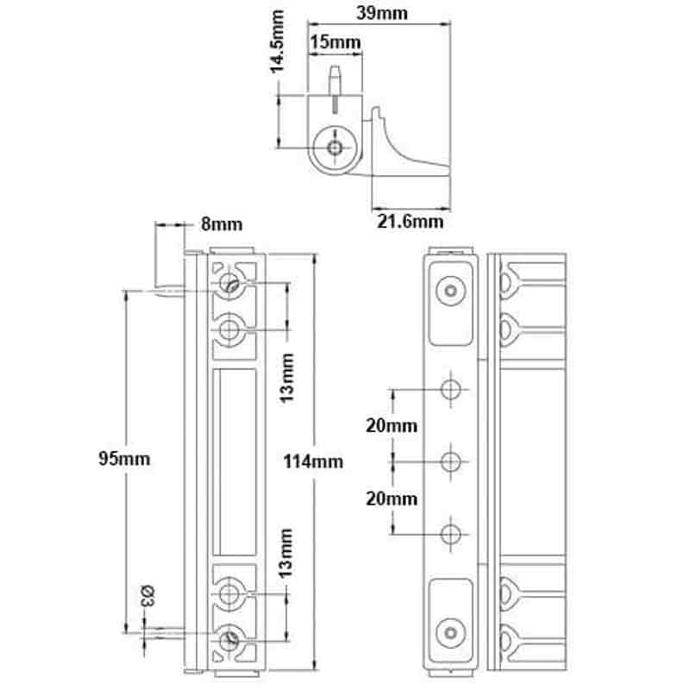

    Dimensions

    • Length: 115mm
    • Width: 15mm
    • Profile Angle: 0 degrees
    • Adjustment: 1.5mm
