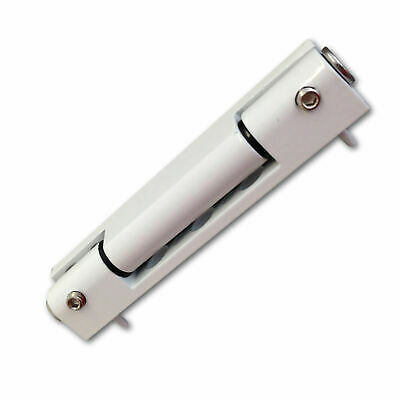

Avocet uPVC Pencil Butt Hinge - Angled 115mm
This Avocet uPVC pencil butt hinges are the oldest style of hinge, typically found on older uPVC doors, but still common today. This 115mm external butt hinge features 2 security hinge pin with concealed grub screw, which prevents the pin from being removed, to provides you peace of mind. With 2 Angled profiles to suit the fitting to you pvc door be sure to choose the right option
- Available in flat and angled formats
- Available in formats to suit Duraflex and Synseal Shield profiles
- Up to 1.5mm of adjustment to cater for all weatherseal types
- Tested to 20,000 operations and load tested to 10 kilos
- 115mm Hinge – International Patent No. 0389519
- Removable pin for ease of assembly with security grubscrew

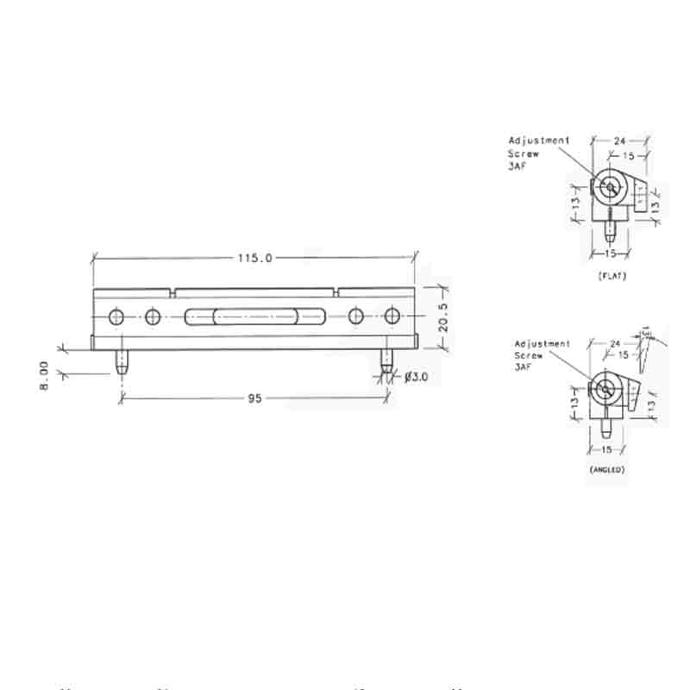

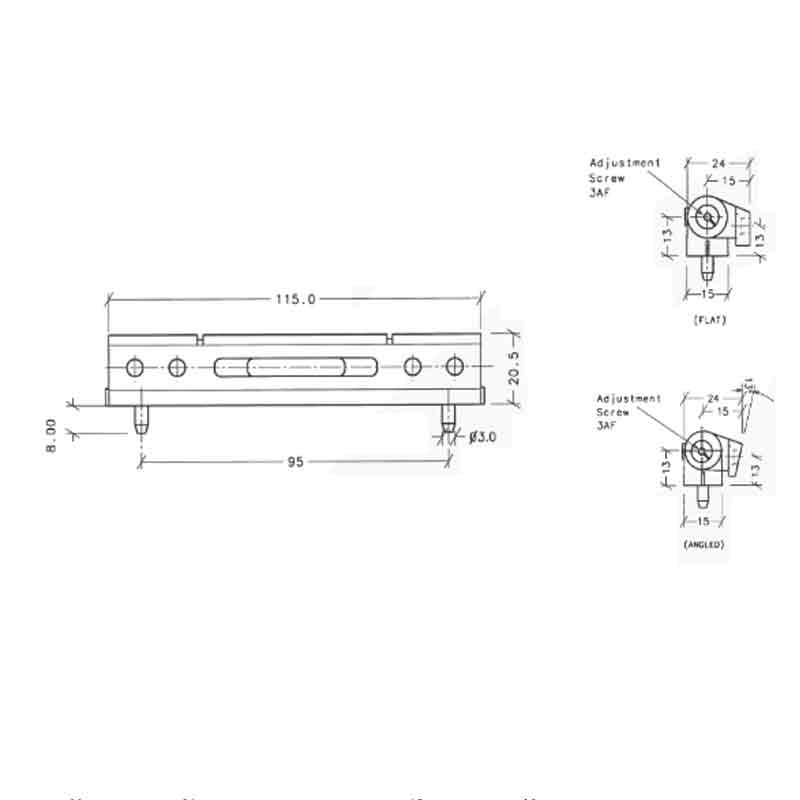

Dimensions
- Length: 115mm
- Width: 15mm
- Profile Angle: Angled
- Adjustment: 1.5mm
