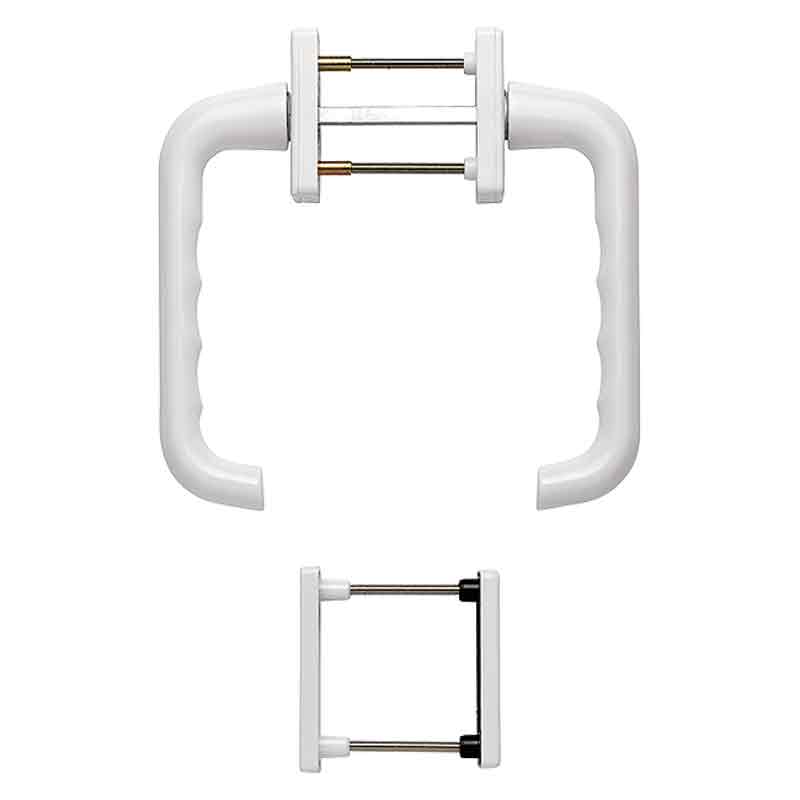

Hoppe Patio Tilt & Slide Handle set Int & Ext 68-73mm

Hoppe Patio Tilt & Slide Handle Set Internal & External lever inc Escutcheon

Hoppe Tilt and Slide Patio Door Handle is a replacement lever for UPVC Tilt & Slide Patio Doors with euro escutcheon plates (where a euro cylinder is fitted below the handle).

HOPPE aluminium tilt/slide handle set with escutcheons for patio doors:

• Stop-in position: 90°
• Escutcheons: outside: cast, inside: nylon base with partial cover cap, supporting lugs
• Spindle: HOPPE solid spindle
• Fixing: concealed, from inside, bolt-through, M5 thread screws
• Fixing euro escutcheon screws & spindle supplied

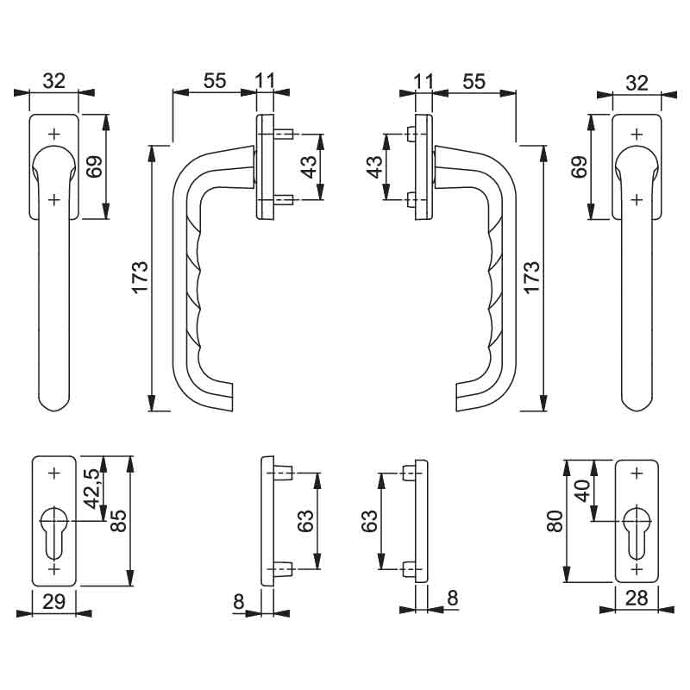

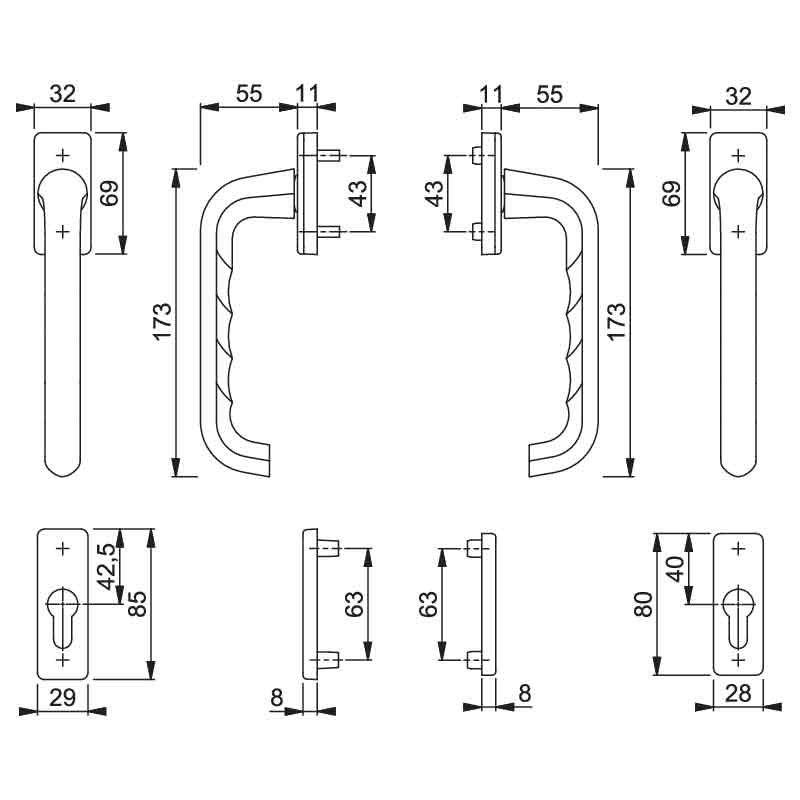

Dimensions

• Lever Length: 173mm
• Lever Escutcheon Width: 32mm
• Lever Screw Centers: 43mm
• Door Thickness: 68 to 73mm
• Spindle Size: 7mm
