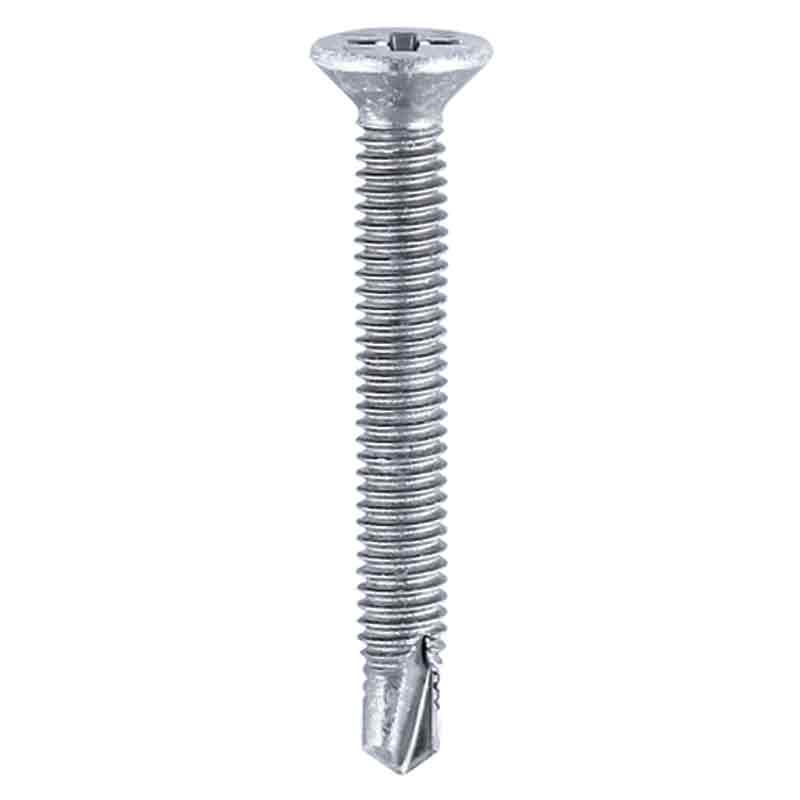

Metric Thread C/Sunk Head Self-Drilling M4 x 16mm

Window Fabrication Screws - Countersunk - PH - Metric Thread - Self-Drilling Point - Zinc M4 x 16mm

An alternative to the self-tapping thread version. This metric threaded screw has multiple uses for fitting a variety of hardware to frames where there is a steel reinforcement present.

• Brand TIMCO
• Corrosion Rating (1-5) 2 - Occasionally damp/wet, rural and sheltered areas
• Driver Bit Size PH2
• Finish Zinc
• Head Type Countersunk
• Material Carbon Steel
• MDT (mm) 2.5
• MOQ 1
• MOQ Increment 1
• Pack Dimensions L x W x H (mm) 135 x 90 x 60

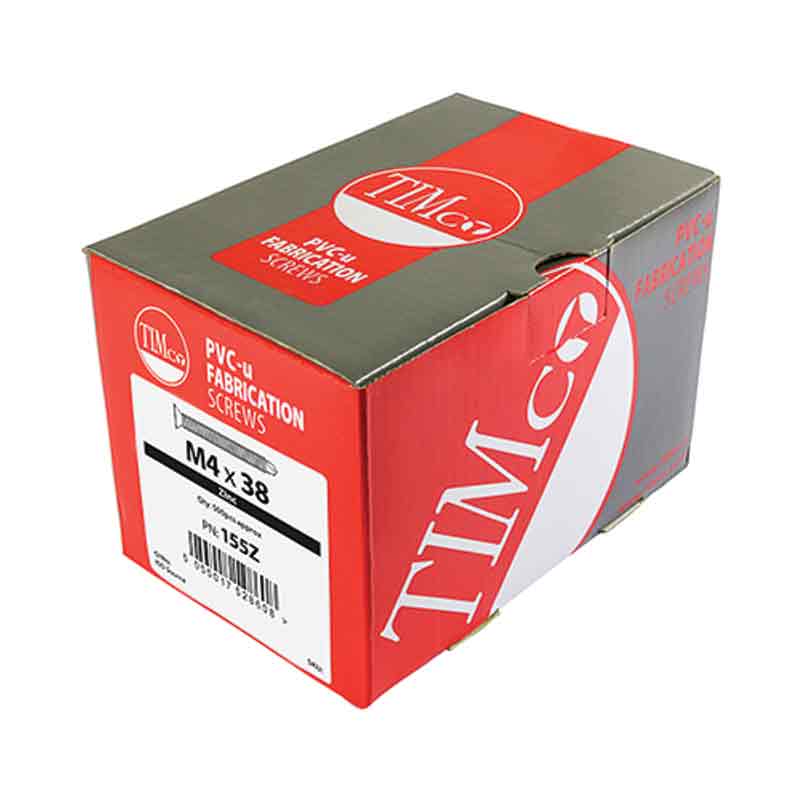

• Pack Qty 1000
• Pack Type Box
• Pack Weight (kg) 1.599
• Pallet Qty (packs) 540
• Point Type Self-Drilling
• Recess Type Phillips
• Size (mm) M4 x 16
• Thread Coverage Fully Threaded
• Thread Type Metric


Dimensions

• Length: 16mm
• Diameter: M4
• Head: PH2
