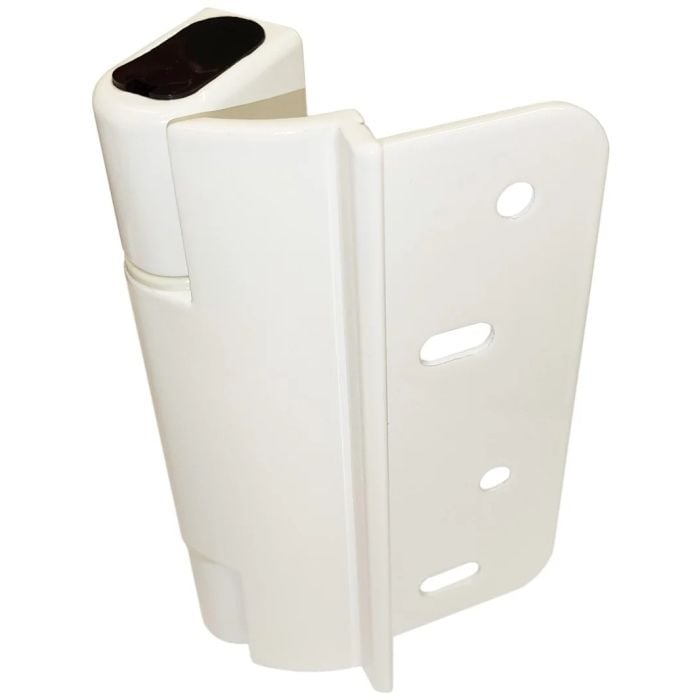

iDeal Composite Hinge Adjustable White
- Fully adjustable for ease of installation and to ensure weather tightness
- Lateral adjustment +/-2mm
- Vertical adjustment +4mm
- Compression adjustment +2mm
- Adjustment can be achieved without dismounting door leaf
- Steel hinge pin enhances security
- 8mm diameter bosses provide additional stability
- Tested to 50,000 cycles underload
- Salt spray testing - 480 hours on powder coated versions, 240 hours on plated versions
- Maximum sash weight 80kg with (3 hinges)
- Simple to fit
- Suites with other Mila door and window hardware products

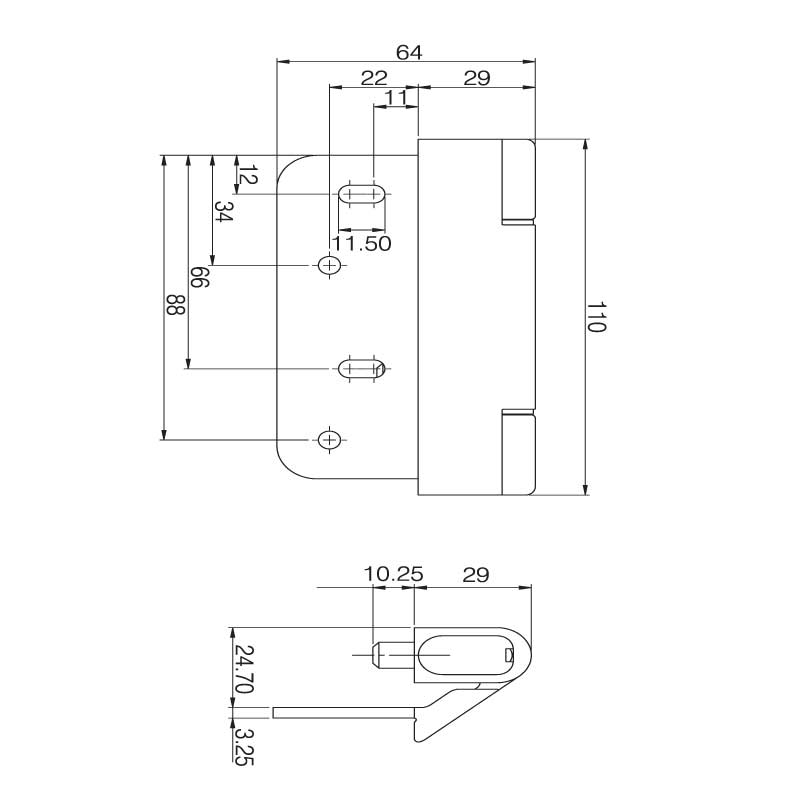

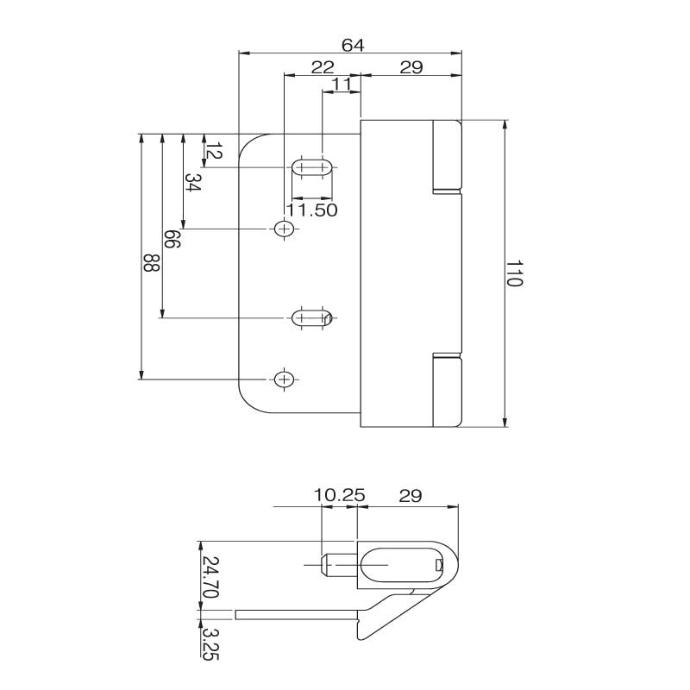

Please note this hinge has been updated to the image pictured the technical drawing slightly different.
Dimensions
- Length: 110mm
- Width: 64mm
