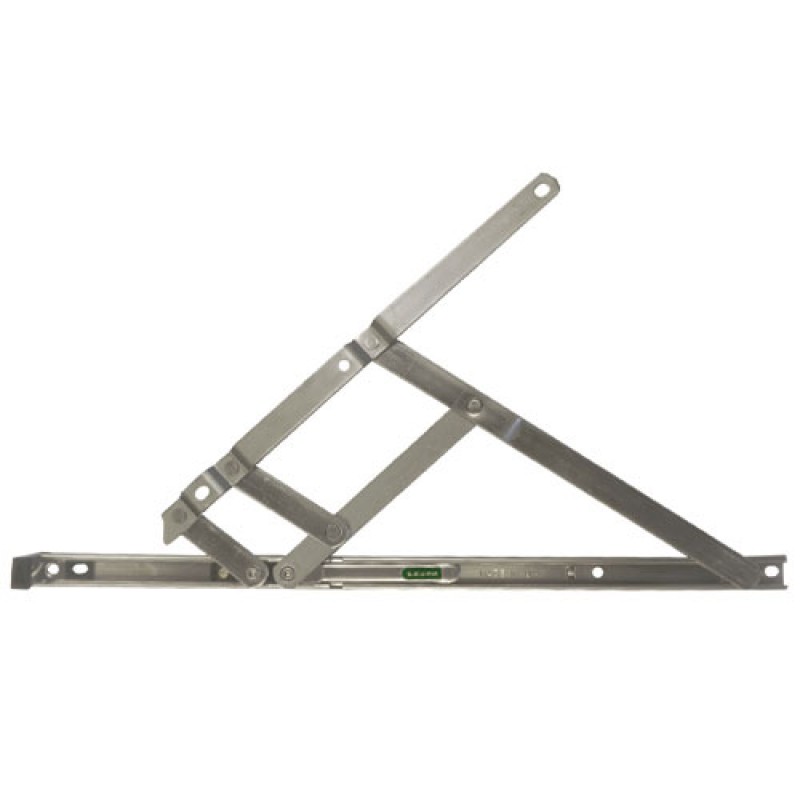

12" Elite Restricted Friction Hinge Side Hung 13mm Stack Height
All the features of the standard with a built in Safety Restrictor. Opening windows carry the risk that a person might fall out of them. A safety restrictor makes this much more unlikely by initially restricting the opening to a fixed position. Opening beyond this initial position is achieved by operating the safety restrictor release mechanism. It is strongly recommended that safety restrictors are used in pairs.
This pair of replacment window hinges are suitable for side hung frames with the window handle on the side of the frame and friction stays top and bottom.
- Suitable for uPVC or Timber Window Frames
- Safety restriction as standard.
- Super smooth Easiclean operation.
- BSI approved.
- BBA approved.
- SBD accredited.
- Suitable for Document Q.
- Sold in Pairs
Dimensions
- Length: 300mm (12")
- Stack Height: 13mm (Stay Thickness)
- Width: 16mm (Euro Groove Width)
- Max Vent Weight: 22 Kg
- Max vent Height: 650mm
- Restricted Angle: 15°
