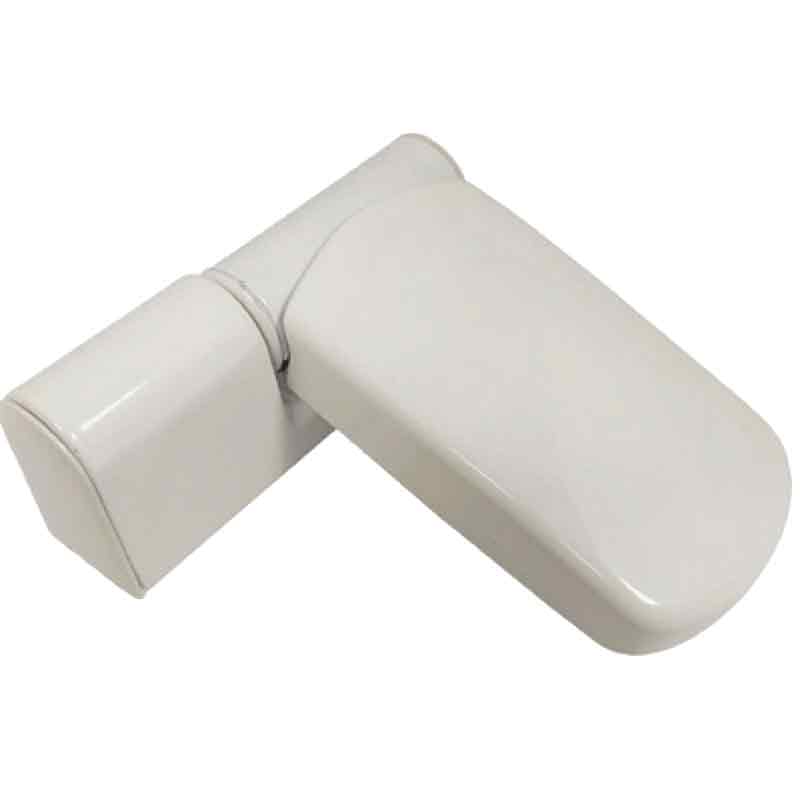

uPVC Door Repair Flag Hinge 19mm
The Elite Flag Door Hinge, ergonomically designed to suit PVC-U door profiles and fully 3D adjustable. Patent pending “Anti-lift” security feature, with a 2.5mm steel carriage plate offering enhanced performance and security. Along with the “Elite” furniture signature dimple on the cover for a suited range.
- Can achieve PAS24 accreditation as part of a complete door assembly.
- Manufactured in Steel and Stainless Steel, Aluminium and Zinc alloys.
- Steel / Stainless Steel sash plate for superior strength
- Patent pending Unique Anti-lift security feature.
- 3D Independent vertical, lateral and compression adjustment.
- Non-handed.
- 10 year mechanical guarantee.

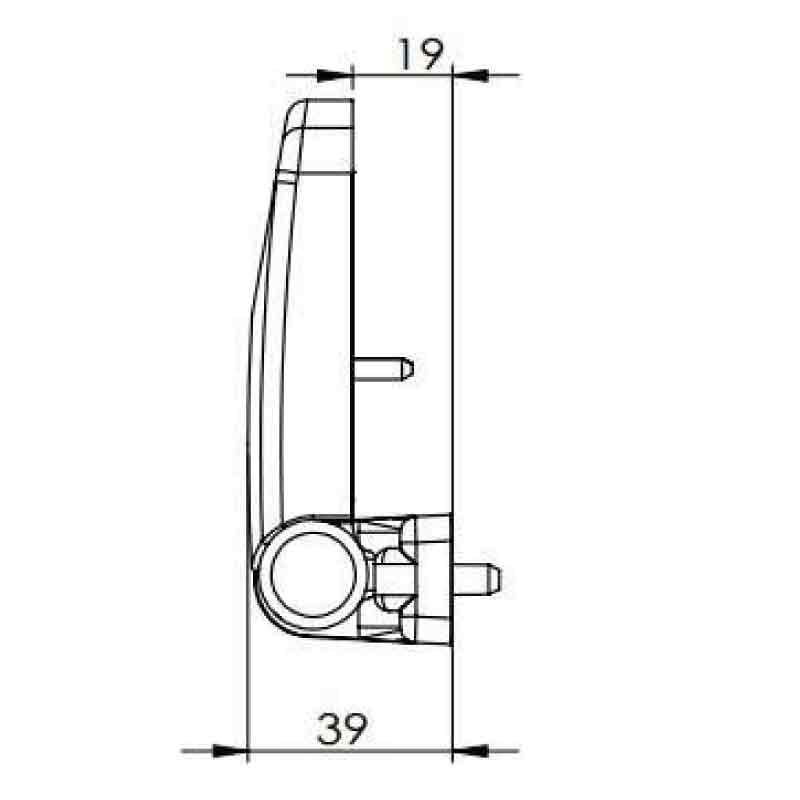

- Available in 19mm and 22mm height options, variety of hinge packers available.
- Approximately 1m wide x 2.2m high
- 2 hinges 80kg – 3 hinges 120kg

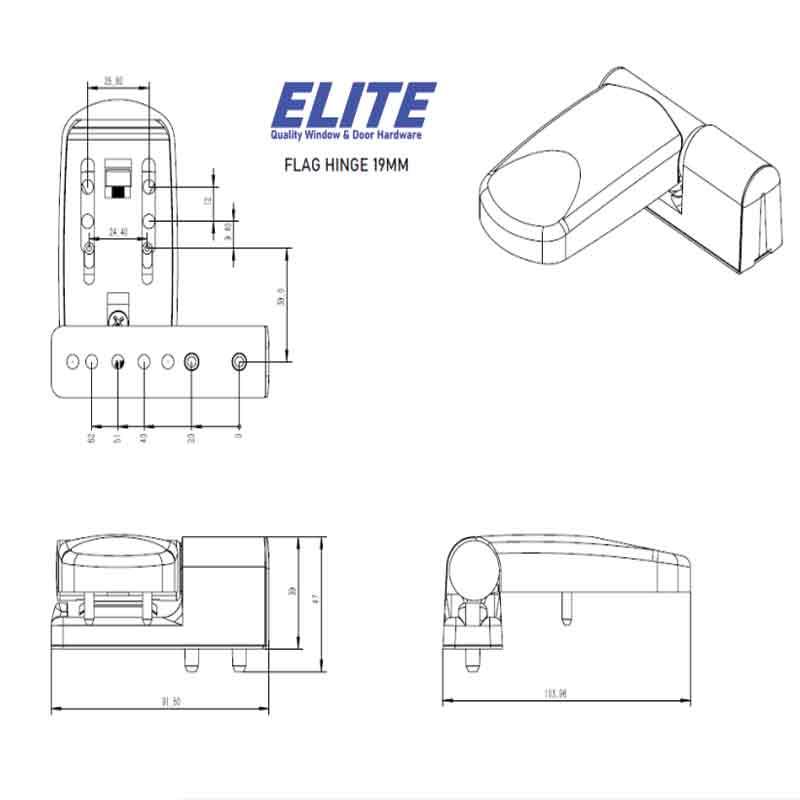

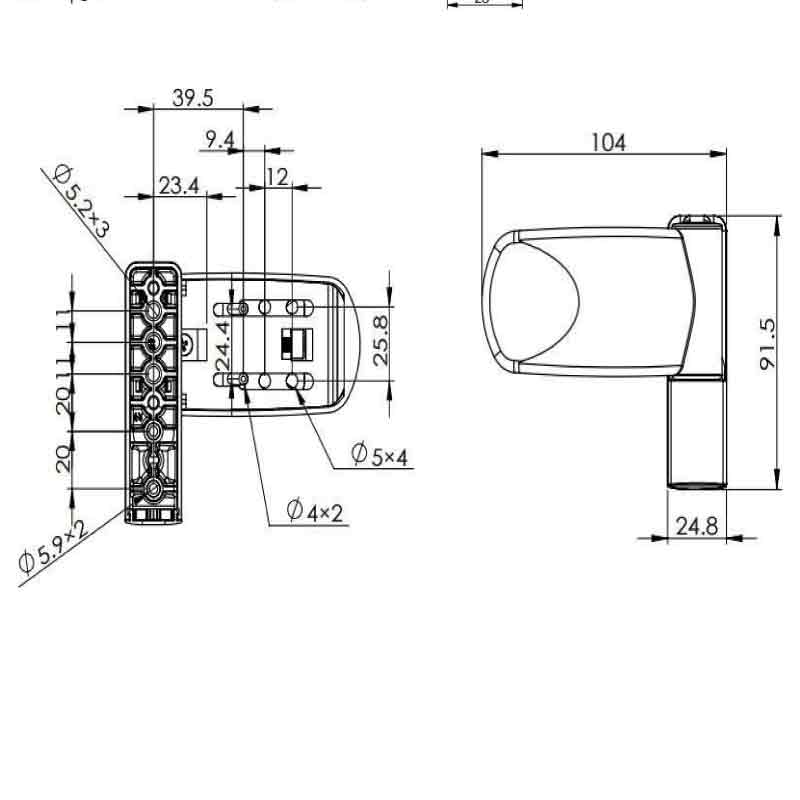

Dimensions
- Total Length: 105mm
- Total Hight: 91.5mm
- Flag Plate Length: 90mm
- Vertical Adjustment: + 6mm (+/-3mm)
- Compression Adjustment: (+/- 3mm)
- Lateral Adjustment: (+/-6mm)
