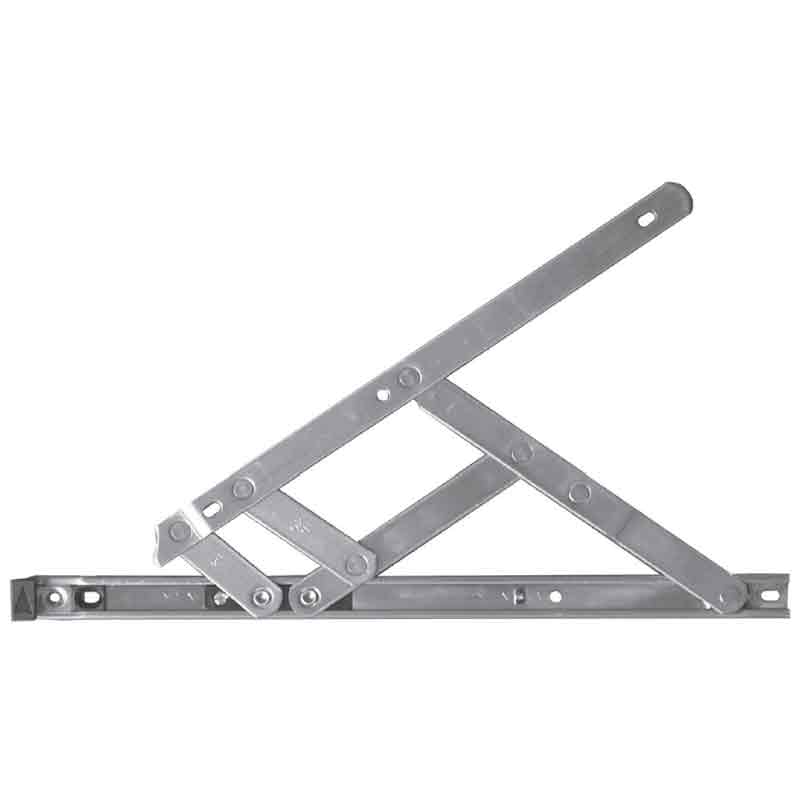

16" Elite Egress Friction Hinge Side Hung 17mm Stack Height
The Elite egress range is designed for fire escape and emergency exit, by providing the user with maximum clearance in the event of an emergency. Available in ferritic steel only.
This pair of replacment window hinges are suitable for side hung frames with the window handle on the side of the frame and friction stays top and bottom.
- Suitable for uPVC or Timber Window Frames
- Gives maximum exit clearance.
- BSI approved.
- BBA approved.
- SBD accredited.
- Suitable for Document Q.
- Sold in Pairs

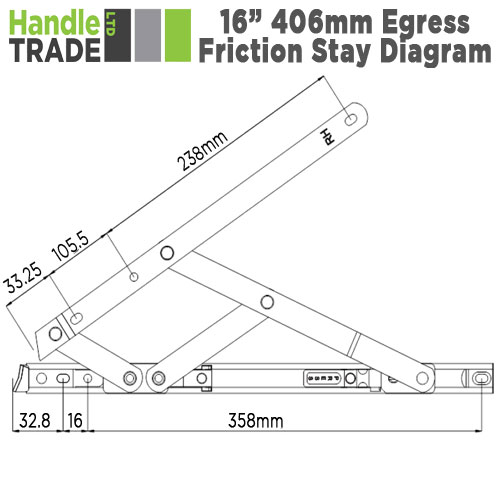

Dimensions
- Length: 406mm (16")
- Stack Height: 17mm (Stay Thickness)
- Width: 16mm (Euro Groove Width)
- Max Vent Weight: 24 Kg
- Max vent Height: 700mm
- Opening Angle: 88°
