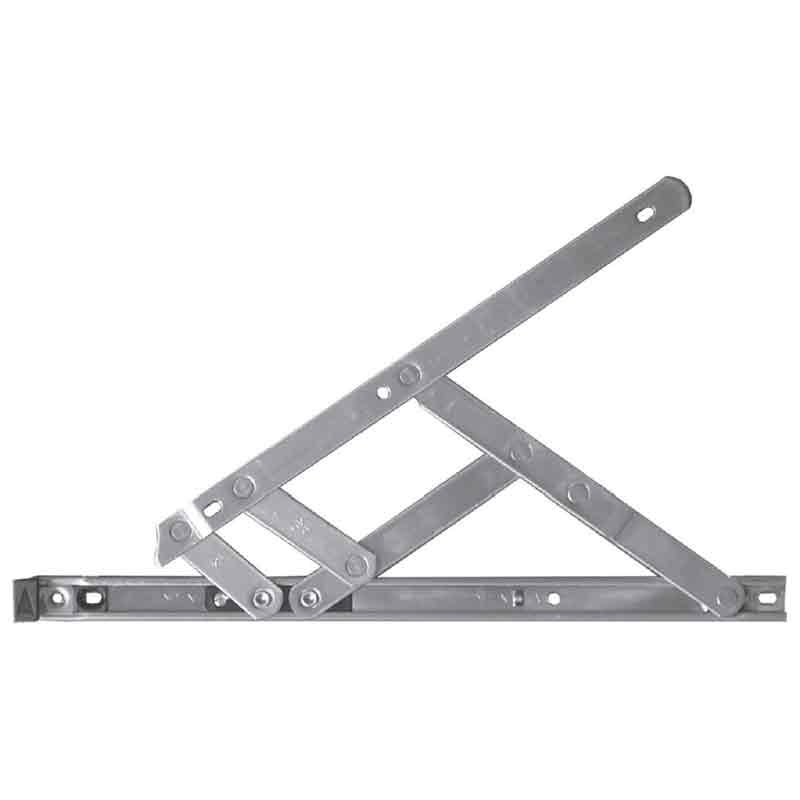

12" Elite Friction Stay Side Hung 17mm Stack Height
This pair of replacment window hinges are suitable for side hung frames with the window handle on the side of the frame and friction stays top and bottom.
BSI, BBA and SBD accredited range with vent arm locating more positively into the end cap ensuring greater weather tightness and security than the Trade stay. This range is available in 13mm and 17mm stack heights covering the majority of profile systems.
- Suitable for uPVC or Timber Window Frames
- Enhanced security and improved weather tightness.
- Manufactured in ferritic and austenitic stainless steel.
- Tested as part of a window system to CE standard.
- BSI approved.
- BBA approved.
- SBD accredited.
- Suitable for Document Q.
- Sold in Pairs

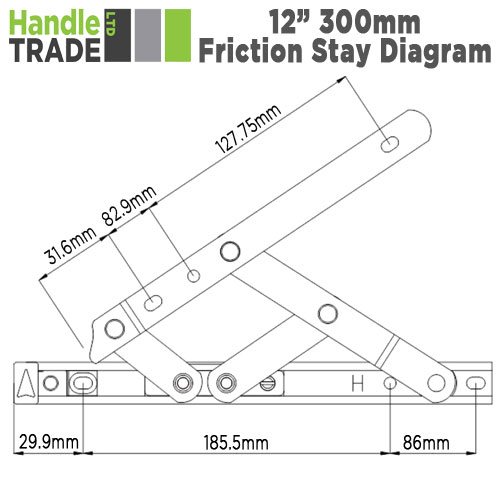

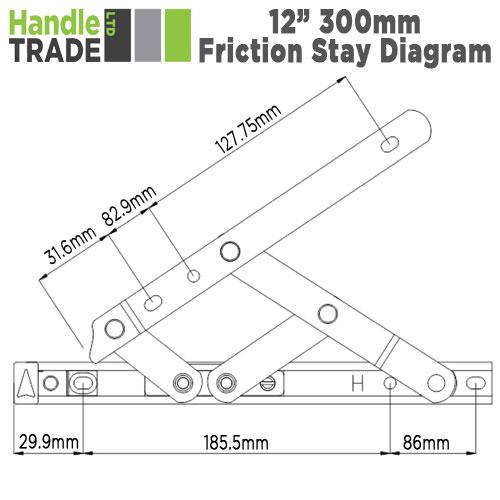

Dimensions
- Length: 300mm (12")
- Stack Height: 17mm (Stay Thickness)
- Width: 16mm (Euro Groove Width)
- Max Vent Weight: 22 Kg
- Max Vent Width: 650mm
- Opening Angle: 61°
