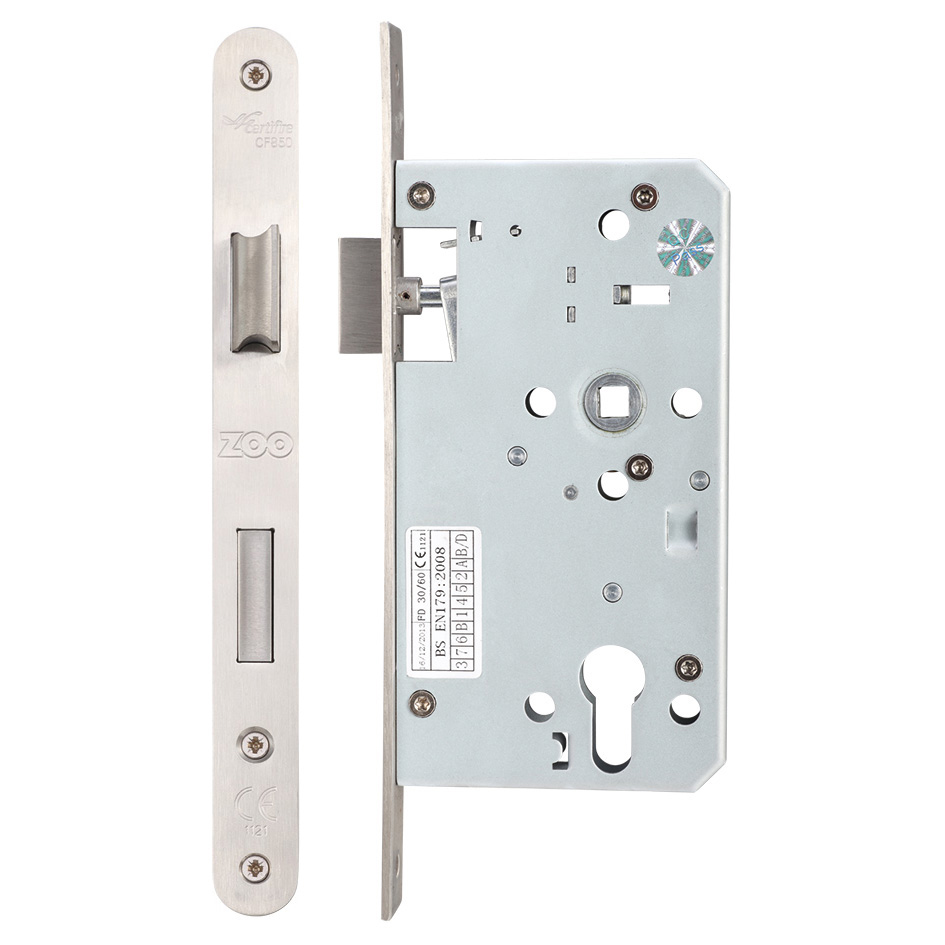

Din Euro Escape lock Door 60mm Backset PZ 72mm Center Radius Forend
Din Euro Escape Lock used in tmber fire doors for offices and schools. 30min and 60min intumicent pads to suit in related products below with the Certifire Certificate to downlod.
-
BS EN 179 : 2008
- 90mm case size
- 60mm backset
- Square profile - 22mm Grade 304 stainless steel forend
- Grade 304 stainless steel latchbolt & deadbolt
- Double throw deadbolt
- Anti-rattle strike
- Grip tight follower
- 72mm c/c

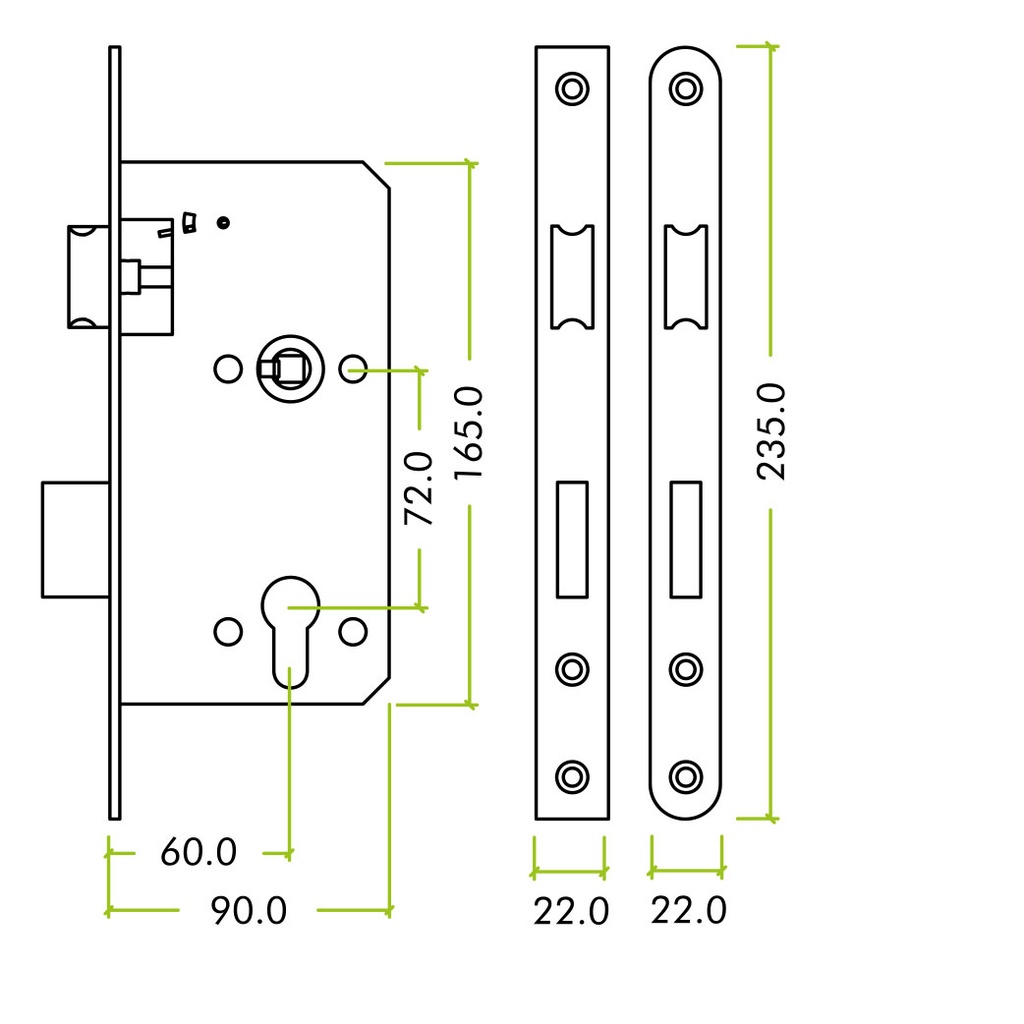

Dimensions
- Forend Length: 235mm
- Forend Width: 22mm
- Cylinder / Spindle Centers: 72mm
- Backset: 60mm
- Case Length: 165mm
- Case Width: 90mm
Click To Download Data / Product Sheet
Click To Download Certifie Certificate
