Challenger Composite Door Hinge 3D Adjustable
Challenger Composite Flag 10 Deg Radius is designed to work in conjunction with the Challenger Body range for Composite and timber doors. The Challenger sash piece is highly adjustable in 2 or 3 directions to ease the installation process.
- Classic composite door sash piece with superior styling
- Flexible product range, a variety of sash plate options
- Secured security pin for open in and open out doors
- Rounded clip fix cover cap for a real secure cover
- True 3D Adjustment for real ease of fabrication and fitting
- Weight loading capacity of 90kg for 3 hinges

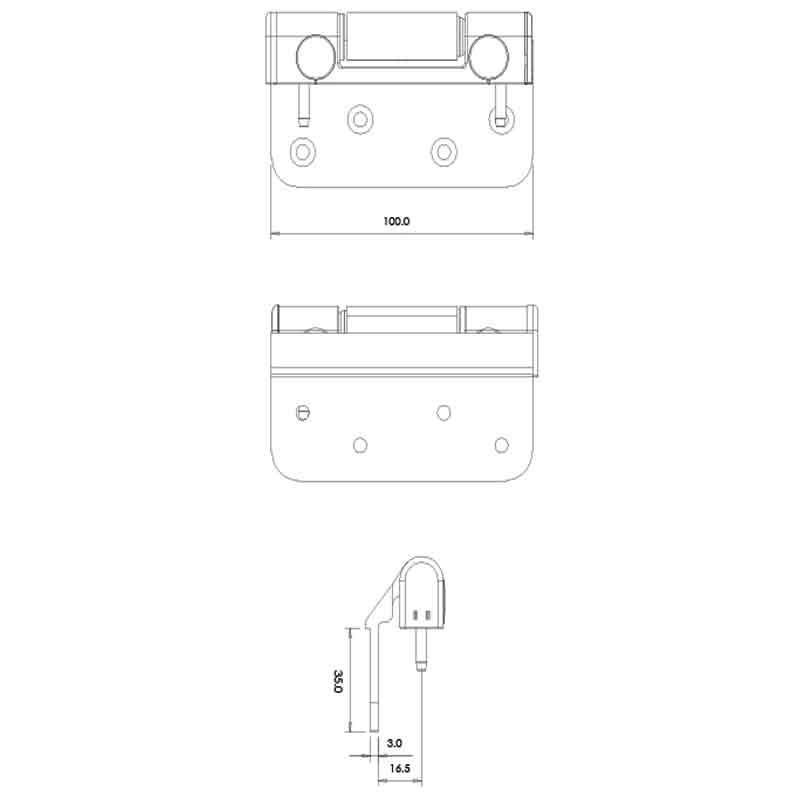

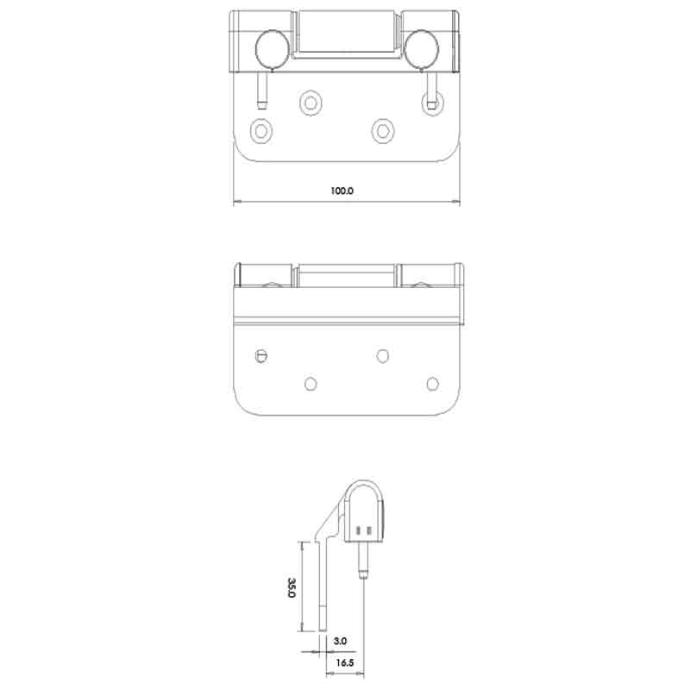

Dimensions
- Length: 100mm
- Door Weight: 90Kg (3 hinges)
- Profile Angle: 0 degrees
- Adjustment: 1.5mm
